Miniature Bearings Australia
THS048C-019-K-NY - Datasheet
MBA
Category Information

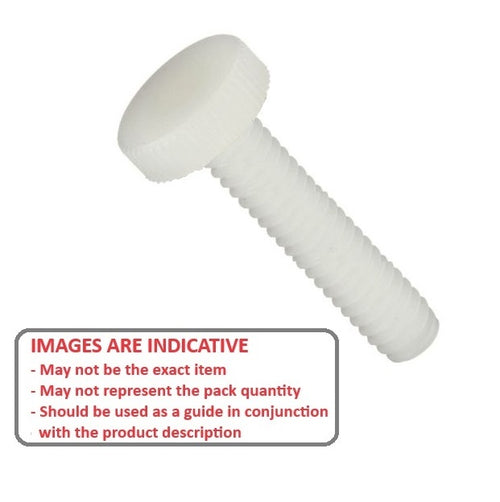

Screws - Thumb - Knurled - NylonNylon Knurled Thumb Screws. Nylon knurled head thumb screws
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size (C) : 10-24 UNC (4.76mm)
- Thread Length (Tl)
19.05
mm
(Equiv. 0.75 in.) - Overall Length (L)
23.81
mm
(Equiv. 0.937 in.) - Head Diameter (D) 12.70 mm
- Head Height (H) 4.76 mm
- Material NYLATRON GS (PA66 + MoS2)
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 94955A040
- NC130
- NC-130
