NT048C-TH2506-S3 - Datasheet
MBA
Category Information

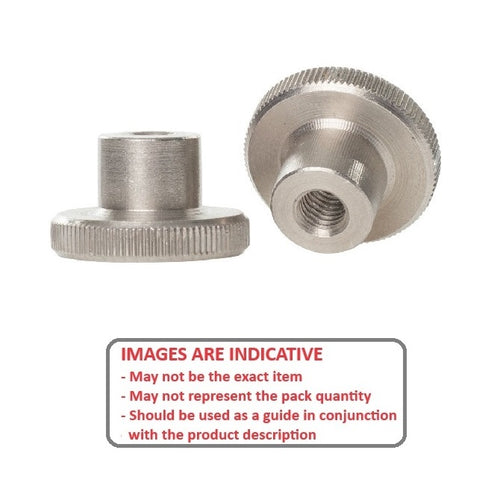

Nuts - Thumb - BasicBasic Thumb Nuts. This is the main category in this series
Product Data

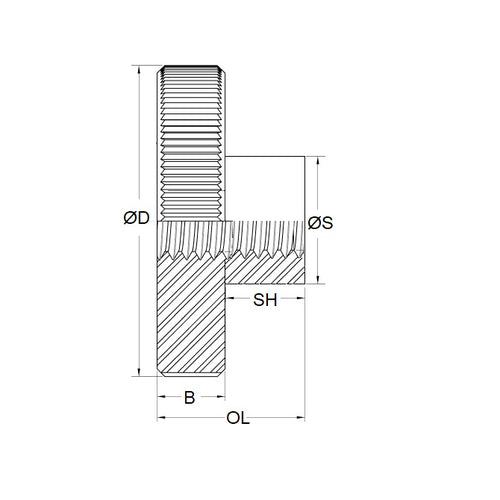

- Thread Size : 10-24 UNC (4.76mm)
- Overall Length
11.1
mm
(Equiv. 0.437 in.) - Head Width (B)
4.76
mm
(Equiv. 0.187 in.) - Head Diameter 25.40 mm
- Shoulder Diameter 9.53 mm
- Shoulder Height 6.35 mm
- Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- SKN-50
- SKN50
