BF0050-0100-0050-DP - Datasheet
MBA
Category Information

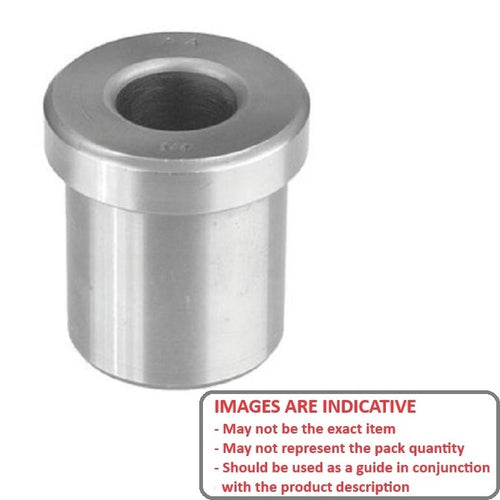

Bushings - Drill - Flanged - Press FitPress Fit Flanged Drill Bushings. Flanged press fit selection. Harden steel
- Hardened metal component that provides a precise guide for cutting tools, ensuring accurate and repeatable hole placement in jigs and fixtures.
- Constrains the drill bit, it reduces tool deflection and tool wear, leading to more consistent holes and longer tool life.
- Hardness: RC 62-64

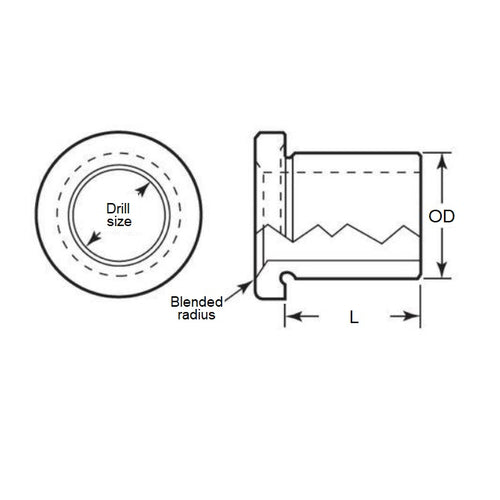

Product Data
- Outside Diameter (OD)
:
10
mm
(Equiv. 0.394 in.) - Drill Size
5.000
mm
(Equiv. 0.197 in.) - Length
5.000
mm
(Equiv. 0.197 in.) - Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- Misumi C-JBHM5-5
- CJBHM55
