CMB010-10-040M-R45 - Datasheet
MBA
Category Information

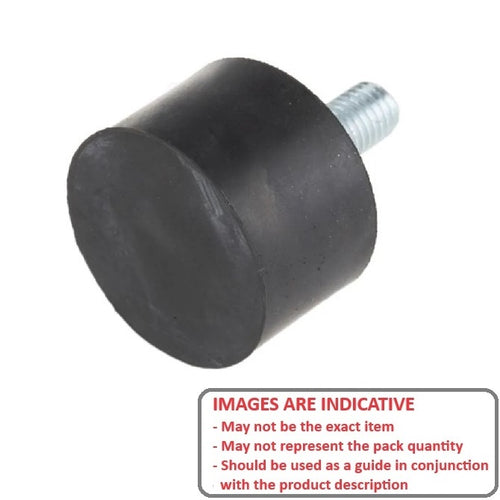

Mounts - Buffer - Male - RoundRound Male Buffer Mounts. Vibration dampening
- An expanded range may be available on special order. Please enquire.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

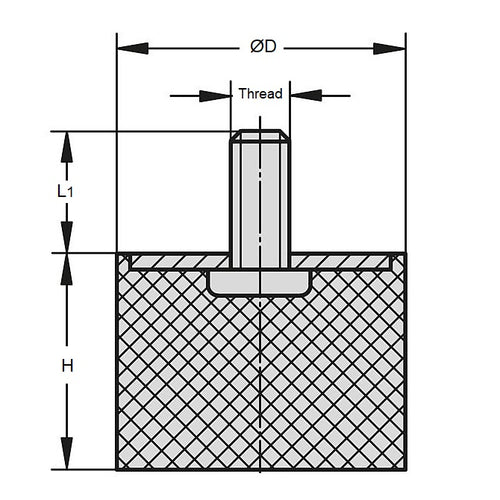

- Nom. Body Diameter (D)
:
10.0
mm
(Equiv. 0.394 in.) - Body Height (H)
10.0
mm
(Equiv. 0.394 in.) - Thread Size (G) M4x0.7
- Shore Hardness 45
- Thread Length (L1) 10.0 mm
- Compression Load 9.5 Kg
- Deflection 2.0 mm
- Configuration Male to Blank
- Material Natural Rubber
Product Compliance and Data
Additional Resources
Cross References
- AVI 1010MFB10-45-M4
- 1010MFB1045M4
