PSP-019-010-C - Datasheet
MBA
Category Information

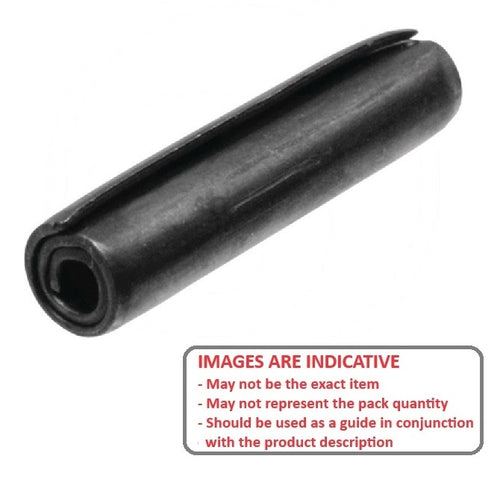

Pins - Coiled - Steel - Standard DutyStandard Duty Steel Coiled Pins. ASME B18.8.3M / ISO 8750 Standard Duty Spirol Pins. Coiled roll pin.
- An expanded range may be available on special order. Please enquire.
Product Data
- Nominal Hole Diameter
:
1.98
mm
(Equiv. 0.078 in.) - Length
9.53
mm
+/- 0.25
(Equiv. 0.375 in.) - Drill Size
1.98 - 2.06
mm
(Equiv. 0.078 in.) - Loose Diameter 2.11 - 2.24 mm
- ISO Standard Duty ASME B18.8.2
- Hardness RC 46-53 (HV 420 to 545)
- Material High Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- 91598A633
- 91612A216
- NoCor SPC-078-0375
- SPC0780375
