TP-020-0191-S3 - Datasheet
MBA
Category Information

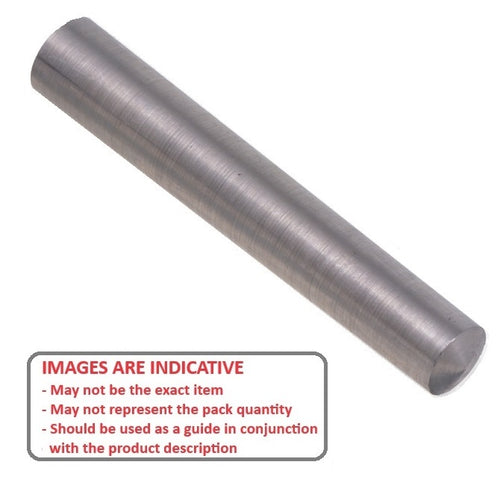

Pins - Taper Imperial - Miniature - Stainless SteelStainless Steel Miniature Taper Imperial Pins. Imperial Sizes Tapered 1:48 (1/4 in. per foot). Miniature sizes.
- An expanded range may be available on special order. Please enquire.
Product Data

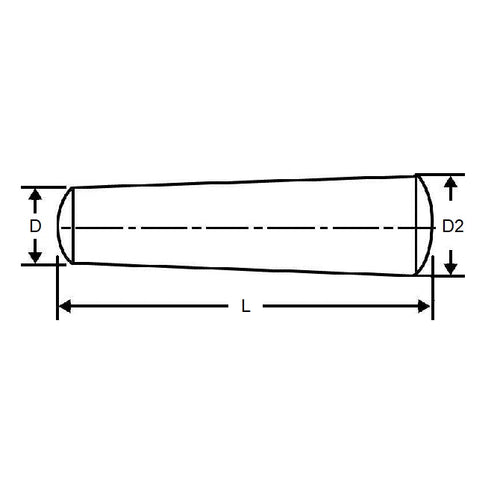

- Nom. Large End Diameter (D2) : 1.98 mm
- Length (L) 19.05 mm
- Nom. Small End Diameter (D) 1.58 mm
- Pin Number 6/0
- Material Stainless Steel Grade 303/304 HRB80
Product Compliance and Data
Additional Resources
Cross References
- 90681A005
- Huyett® TPS-60-0750
- NoCor® TPS-60-0750
- TPS600750
- S7250Y6024
- S7250Y-6024
