SFR1-4B-ZZS-MC3 - Datasheet

MBA

Category Information

Bearings - Single Row Ball - Flanged - Precision - 440C Stainless

440C Stainless Precision Flanged Single Row Ball Bearings. Stainless Steel Bearings with Flanges.

Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
Single row radial ball bearings with flanges.
Miniature sizes from 1mm to 10mm bore and larger sizes to over 50mm bore.

Product Data

ID (d) : 1.984 mm _{+ 0.000 / - 0.0075}
(Equiv. 0.078 in.)
OD (D) 6.350 mm _{+ 0.000 / - 0.0075}
(Equiv. 0.25 in.)
Width (B) 3.571 mm _{+ 0.000 / - 0.125}
(Equiv. 0.141 in.)
Flange Diameter (DF) 7.518 mm
Flange Width (BF) 0.787 mm
Precision Grade Abec 1
Closure Type ZZS
Bearing Type Radial Flanged
Material Stainless Steel AISI 440C

Lubrication Type Grease
Lubrication Name Standard Unspecified
Basic Part FR1-4B
Limiting Speed 67000
Cage Type Crown
Static Load Rating KGf 10
Dynamic Load Rating KGf 29
Radii 0.10 mm
Inner Shoulder (UI) 3.92mm
Outer Shoulder (UO) 5.75 mm
Number of Balls 7
Clearance MC3 (5 to 10)
Precision Grade Abec 1
Closure Type ZZS
Max Temperature 120 Deg. C

Country of Origin: JP

Product Compliance and Data

Additional Resources

Cross References

View full details

SFR1-4B-ZZS-MC3Diagram

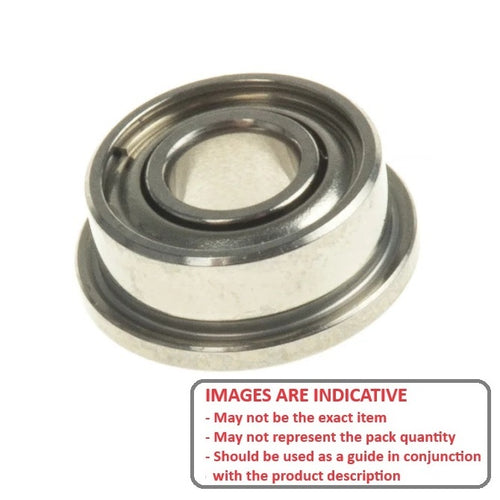

SFR1-4B-ZZS-MC3Image
