SK032W-025-PH-CZ - Datasheet

MBA

Category Information

Screws - Countersunk - Phillips - Steel

Steel Phillips Countersunk Screws. Flat Head Countersunk UNC - UNF - METRIC

  • An expanded range may be available on special order. Please enquire.
  • Nuts sold seperately - See Nuts.

Product Data

  • Thread Size (C) : 1/8-40 BSW (3.175mm)
  • Overall Length (L) 25.4 mm
    (Equiv. 1 in.)
  • Material Zinc Plated Steel
  • Max Head Diameter (A) 6.02 mm
  • Max Head Height 2.3 mm
  • Type Countersunk / Philips
  • Pitch 0.635 mm
  • Threads Per Inch 40 TPI
  • Material Zinc Plated Steel
Country of Origin: TW

Product Compliance and Data

Additional Resources

Cross References

  • Hitech MSCPZP181
View full details

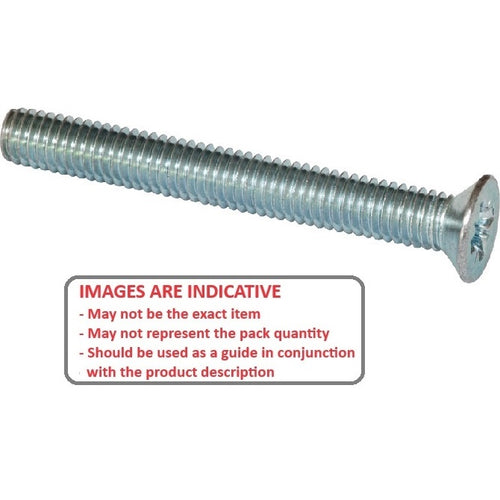

SK032W-025-PH-CZDiagramSK032W-025-PH-CZImage
