RCL-016-026-Z - Datasheet
MBA
Category Information

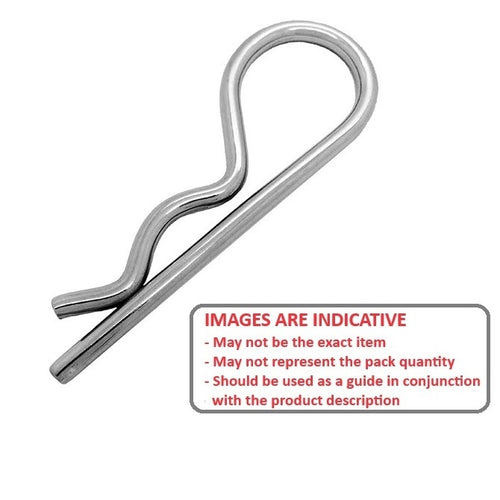

R Clips - Single Coil - SteelSteel Single Coil R Clips. Also known as internal hitch pins, bridge pins or humpback pins
- An expanded range may be available on special order. Please enquire.
- Material: Spring Wire
Product Data

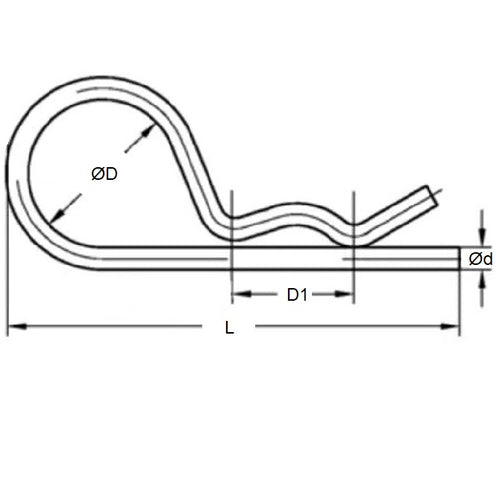

- Wire Thickness (d) : 1.60 mm
- Length (L) 26.0 mm
- Material Zinc Plated
- Drill Hole Size 2.00 mm
- Approx.Inside Eye (D) 5.00 to 9.00 mm
- Shaft Size Range 7.00 to 12.00 mm
- Approx. Bridge Length (D1) 8 mm
- Material Carbon Spring Steel Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- 98335A044
- RPS1622
- RPS1.6-22
