Miniature Bearings Australia

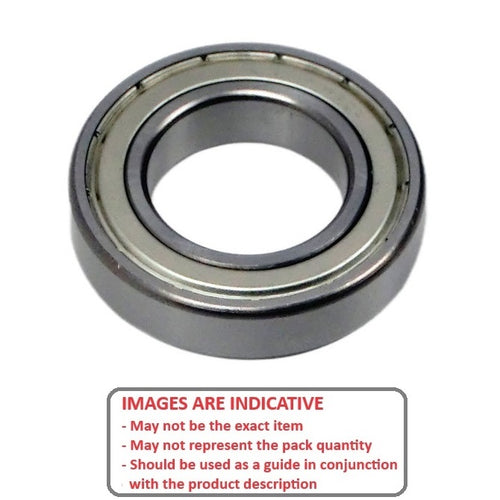

691XA-ZZ-MC3 - Datasheet
MBA
Category Information
Bearings - Single Row Ball - Unflanged - Precision - Chrome SteelChrome Steel Precision Unflanged Single Row Ball Bearings. Chrome steel radial ball bearings.
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
- Standard single row radial ball bearings.
Product Data

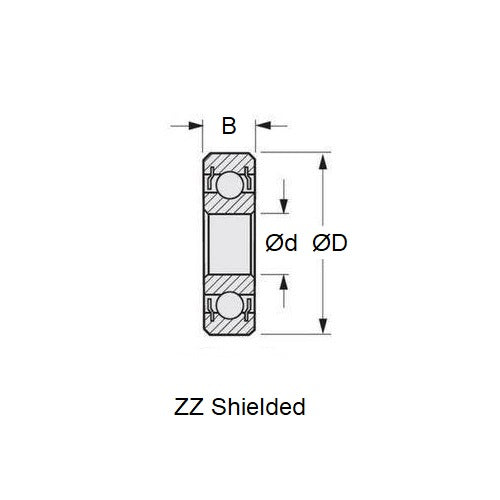

- ID (d)
:
1.500
mm
+ 0.000 / - 0.0075
(Equiv. 0.059 in.) - OD (D)
5.000
mm
+ 0.000 / - 0.0075
(Equiv. 0.197 in.) - Width (B)
2.600
mm
+ 0.000 / - 0.125
(Equiv. 0.102 in.) - Precision Grade Abec 1
- Closure Type ZZ
- Bearing Type Radial
- Material Chrome Steel SAE 52100
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part 691XA
- Limiting Speed 85000
- Cage Type Crown
- Static Load Rating KGf 5
- Dynamic Load Rating KGf 17
- Radii 0.15 mm
- Inner Shoulder (UI) 2.70mm
- Outer Shoulder (UO) 4.40 mm
- Number of Balls 6
- Clearance MC3 (5 to 10)
- Precision Grade Abec 1
- Closure Type ZZ
- Max Temperature 120 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Cross References
- Nachi 015M05-ZZ
- GRW 69-1.5-2Z
- NTN 69-1.5-2Z
- NTN 69-1.5-ZZA
- Shielded Width A 691X/2.6
- Shielded 691XA / 3
- ISO 691XHZZ
- ISO 691XH-ZZ
- MPB EL15CHH
- NTN W69-1.5-2Z
- NTN W69-1.5ASSA
- NTN W69-1.5-ZZA
- ADR X1.5-ZZ
- R515ZZ
- R515-ZZ
- W6915ASSA
- W6915ZZA
- W69152Z
- X15ZZ
- 015M05ZZ
- 691XZZ
- 691X-ZZ
- 691XAZZMC3
- 691XA-ZZMC3
- 691XA Basic Size Ref
