PSP-015-010-C - Datasheet
MBA
Category Information

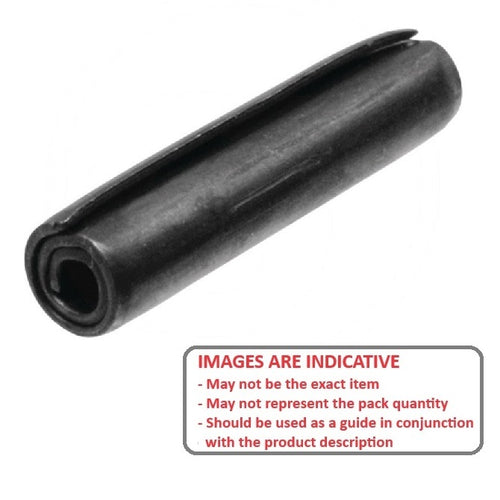

Pins - Coiled - Steel - Standard DutyStandard Duty Steel Coiled Pins. ASME B18.8.3M / ISO 8750 Standard Duty Spirol Pins. Coiled roll pin.
- An expanded range may be available on special order. Please enquire.
Product Data
- Nominal Hole Diameter
:
1.50
mm
(Equiv. 0.059 in.) - Length
10.00
mm
+/- 0.50
(Equiv. 0.394 in.) - Drill Size
1.50 - 1.60
mm
(Equiv. 0.059 in.) - Loose Diameter 1.62 - 1.73 mm
- ISO Standard Duty ISO8750 / ASME B18.8.3M
- Hardness RC 46-53 (HV 420 to 545)
- Double Shear Strength Min. 1 Kn
- Material High Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- SEP1510
- SEP1.5-10
