KW-016-079-C - Datasheet
ExaktKey
Category Information

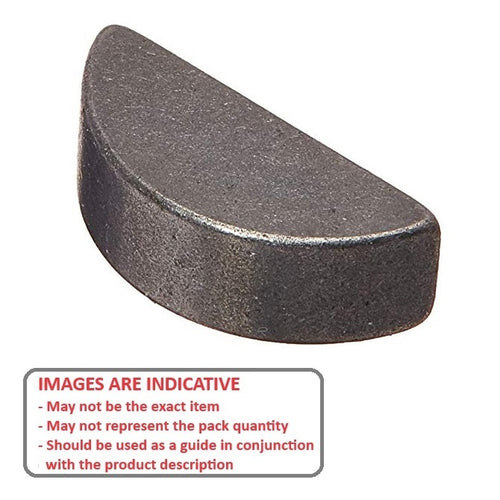

Keys - Woodruff - PlainPlain Woodruff Keys. Plain carbon steel
- An expanded range may be available on special order. Please enquire.
Product Data

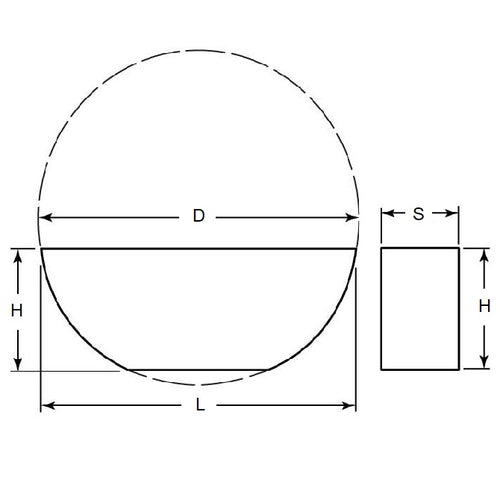

- Thickness (S)
:
1.59
mm
+/- 0.025
(Equiv. 0.063 in.) - Basis Diameter (D)
7.94
mm
+/- 0.250
(Equiv. 0.313 in.) - Approx. Height (H)
3.0
mm
(Equiv. 0.118 in.) - Finish Plain
- Hardness HRB 80
- Material Carbon Steel C45
Product Compliance and Data
Additional Resources
Cross References
- WOODRUFF 202.5
- 98481A055
- NoCor WKA-206
- NoCor WKC-206
- WKC206
- WKA206
