Miniature Bearings Australia
RP016-0064-C - Datasheet
MBA
Category Information

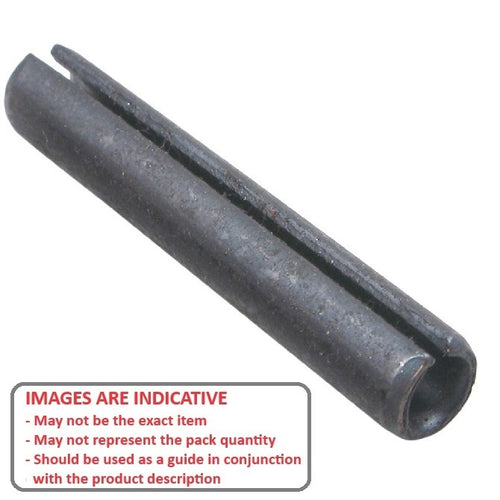

Pins - Roll - Carbon SteelCarbon Steel Roll Pins. Plain carbon spring steel DIN1481/ISO8752.
- An expanded range may be available on special order. Please enquire.
- Also known as sel-lok and bissell pins
Product Data
- Nominal Diameter (D) : 1.59 mm
- Length (L) 6.35 mm
- Free Diameter 1.75 mm
- Thickness (S) 0.31 mm
- Chamfer Length (cL) 0.18-0.71 mm
- Chamfer Diameter (cD) 1.5 mm
- Standard DIN1481 / ISO8752
- Type Standard
- Material Carbon Spring Steel Self Finish
Product Compliance and Data
Additional Resources
Cross References
- Brighton Best® 801002
- 98296A019
- Huyett® SPP-062-0250
- NoCor® SPP-062-0250
- NoCor® SPP-062-0252
- SPP0620252
- SPP0620250
