Miniature Bearings Australia
RP016-0159-420 - Datasheet
MBA
Category Information

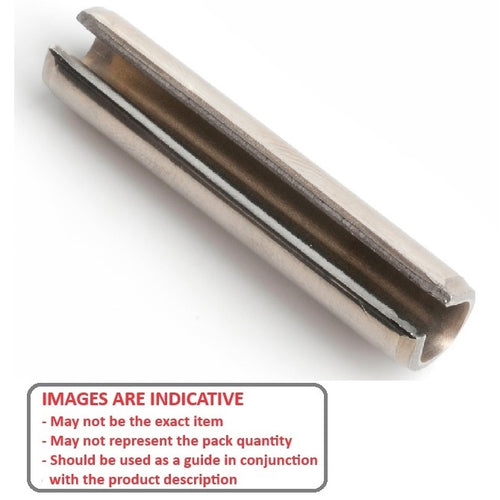

Pins - Roll - Stainless Steel - 420 Grade420 Grade Stainless Steel Roll Pins. 420 grade stainless DIN1481/ISO8752.
- An expanded range may be available on special order. Please enquire.
- Also known as sel-lok and bissell pins
Product Data
- Nominal Diameter (D) : 1.59 mm
- Length (L) 15.90 mm
- Free Diameter 1.75 mm
- Thickness (S) 0.31 mm
- Chamfer Length (cL) 0.18-0.71 mm
- Chamfer Diameter (cD) 1.5 mm
- Standard DIN1481 / ISO8752
- Type Standard
- Material Stainless Steel AISI 420C Rc 46-52
Product Compliance and Data
Additional Resources
Cross References
- 92383A108
- Reid Tool® P-115
- NoCor® SPS420-062-0626-420SS
- NoCor® SPSP-062-0626-420SS
- SPSP0620626420SS
- SPS4200620626420SS
- P115
- A9Y35-0220
- A9Y350220
