RP016-0127-420 - Datasheet
MBA
Category Information

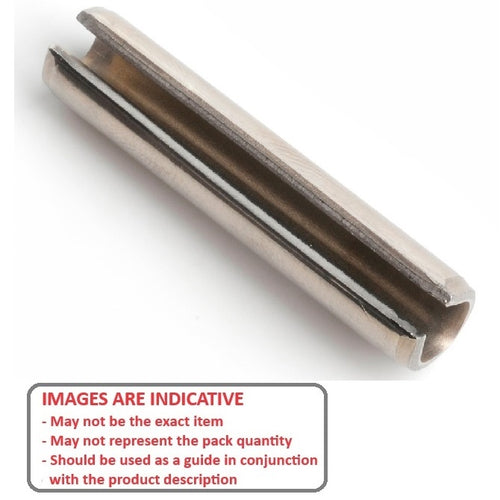

Pins - Roll - Stainless Steel - 420 Grade420 Grade Stainless Steel Roll Pins. 420 grade stainless DIN1481/ISO8752.
- An expanded range may be available on special order. Please enquire.
- Also known as sel-lok and bissell pins
Product Data
- Nominal Diameter (D) : 1.59 mm
- Length (L) 12.70 mm
- Free Diameter 1.75 mm
- Thickness (S) 0.31 mm
- Chamfer Length (cL) 0.18-0.71 mm
- Chamfer Diameter (cD) 1.5 mm
- Standard DIN1481 / ISO8752
- Type Standard
- Material Stainless Steel AISI 420C Rc 46-52
Product Compliance and Data
Additional Resources
Cross References
- Brighton Best® 803006
- 92383A106
- Small Parts DWX-1-8
- Reid Tool® P-110
- NoCor® SPS420-062-0500-420SS
- Huyett® SPSP-062-0500
- NoCor® SPSP-062-0500
- NoCor® SPSP-062-0500-420SS
- SPS4200620500420SS
- SPSP0620500420SS
- DWX18
- P110
- A9Y350216
- A9Y35-0216
