PSP-016-013-C - Datasheet
MBA
Category Information

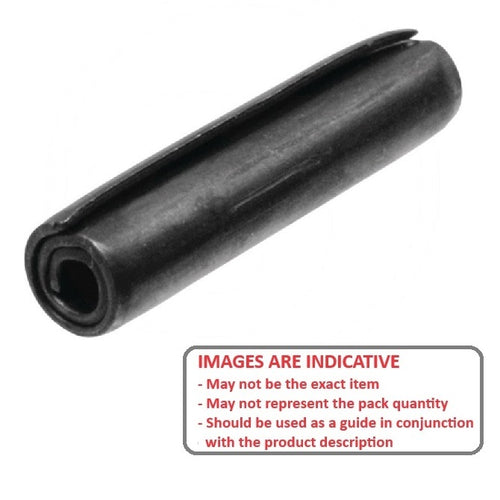

Pins - Coiled - Steel - Standard DutyStandard Duty Steel Coiled Pins. ASME B18.8.3M / ISO 8750 Standard Duty Spirol Pins. Coiled roll pin.
- An expanded range may be available on special order. Please enquire.
Product Data
- Nominal Hole Diameter
:
1.59
mm
(Equiv. 0.063 in.) - Length
12.70
mm
+/- 0.50
(Equiv. 0.5 in.) - Drill Size
1.59 - 1.65
mm
(Equiv. 0.063 in.) - Loose Diameter 1.70 - 1.83 mm
- ISO Standard Duty ASME B18.8.2
- Hardness RC 46-53 (HV 420 to 545)
- Material High Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- 91598A106
- NoCor SPC-062-0500
- SPC0620500
- A9Q360216
- A9Q36-0216
