SS064F-0064-AS-CP - Datasheet
MBA
Category Information

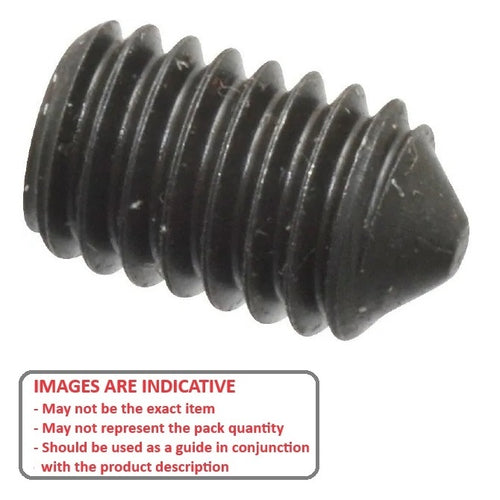

Socket Set Screws - Cone PointCone Point Socket Set Screws. Cone point grub screws
- Socket driven grub screws with a cone point.
- Sharp, pointed cone-shaped end designed to penetrate and wedge into the material it secures, providing exceptional axial and torsional holding power for permanent or long-term applications like holding parts on a shaft.
Product Data
- Thread Size : 1/4-28 UNF (6.35mm)

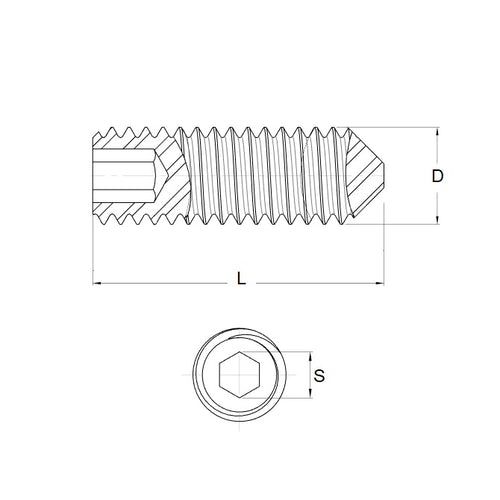

- Thread Length (L)
6.4
mm
(Equiv. 0.252 in.) - Type Cone Point
- Hex Key Size 3.18 (1/8)
- Pitch 0.907 mm
- Threads Per Inch 28 TPI
- Point Angle 90 ° +/- 2
- Material Carbon Steel
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 92695A311
- BRB-121125P
- BRB121125P
