SS064F-0064-AS-BT - Datasheet
MBA
Category Information

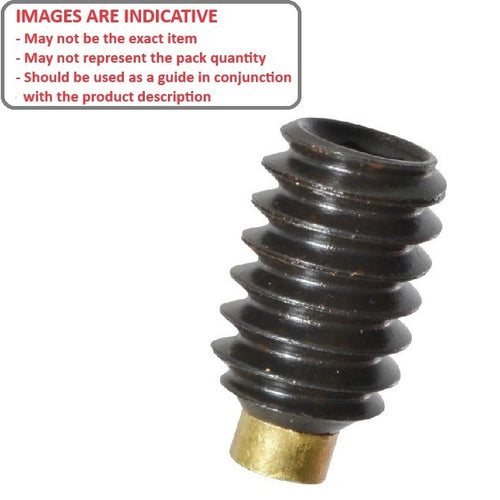

Socket Set Screws - Brass Tipped - Alloy SteelAlloy Steel Brass Tipped Socket Set Screws. Brass tipped grub screws. Helps to prevent shaft damage on harder shafts.
- Socket driven grub screws that uses a brass tip to prevent damage to the shaft it secures.
- Brass tip provides a gentler contact point than a pointed or cup-point set screw, making it ideal for applications like securing gears to shafts where protecting the component's surface from marring or wear is crucial.
- Often used in precision mechanical and electrical assemblies where a secure, non-damaging hold is required.
Product Data
- Thread Size : 1/4-28 UNF (6.35mm)
- Thread Length (L)
6.4
mm
(Equiv. 0.252 in.) - Type Brass Tipped
- Overall Length (L + L1) 7.9 mm
- Tip Diameter (d) 3.2 mm
- Tip Length (L1) 1.5
- Pitch 0.907 mm
- Threads Per Inch 28 TPI
- Finish Black Oxide
- Material Carbon Steel
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 91381A351
- BTS-160
- BTS160
