IN-TP-064F-13-WSS - Datasheet
MBA
Category Information

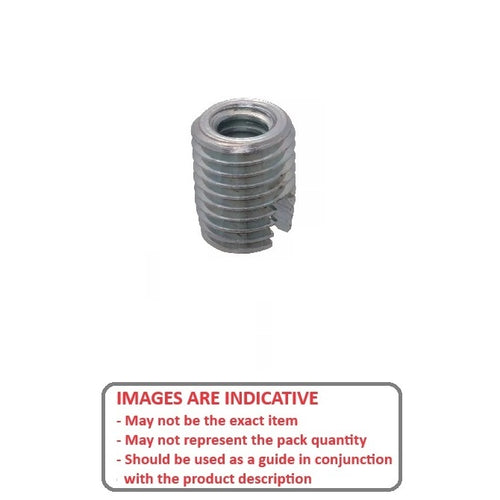

Inserts - Self Tapping - For Wood - Slotted Drive - ShortShort Slotted Drive For Wood Self Tapping Inserts. Threaded inserts are screwed into pre-formed or pre-drilled holes and cut their own threads. Perfect for permanent installations.
- Threaded bushing with external threads that cuts its own internal threads into a pre-drilled hole.
- Creates a permanent, wear-resistant, and strong machine thread in materials such as aluminum, brass, cast iron, and plastics, without the need for a pre-tapped hole.
- Used for strengthening materials, providing durable fastening points for machine screws, and repairing damaged threads.
- Made from brass
- Install with a screwdriver
- Superior holding power in hard and soft woods, particle board and other wood products. Long pilot assists with straight driving into a drilled hole.
Product Data

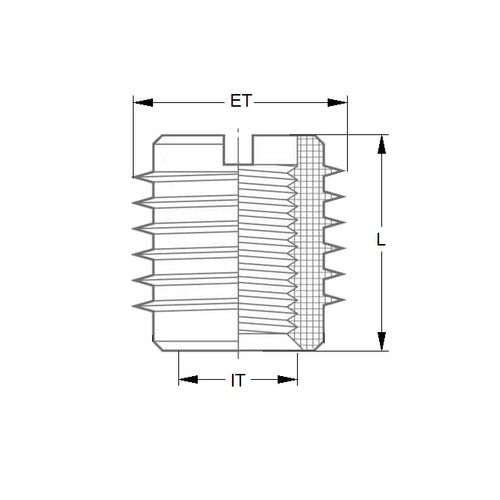

- Internal Thread : 1/4-28 UNF (6.35mm)
- Rec. Hole Diameter
9.525
mm
(Equiv. 0.375 in.) - Length (L)
12.700
mm
(Equiv. 0.5 in.) - Outside Diameter (B) 11.506 mm
- Overall Length 12.700
Product Compliance and Data
Additional Resources
Cross References
- INTP0635F127WS
