SS064C-0095-AS-CP - Datasheet
MBA
Category Information

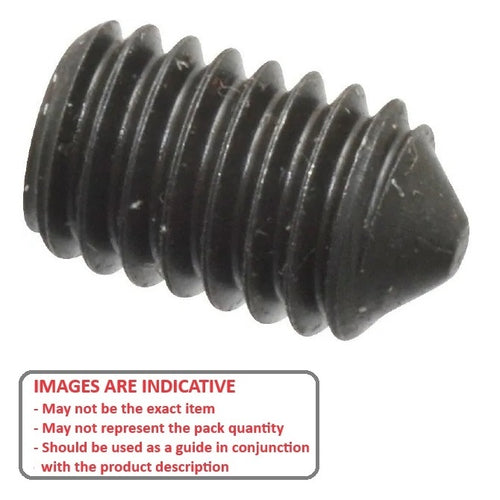

Socket Set Screws - Cone PointCone Point Socket Set Screws. Cone point grub screws
- Socket driven grub screws with a cone point.
- Sharp, pointed cone-shaped end designed to penetrate and wedge into the material it secures, providing exceptional axial and torsional holding power for permanent or long-term applications like holding parts on a shaft.

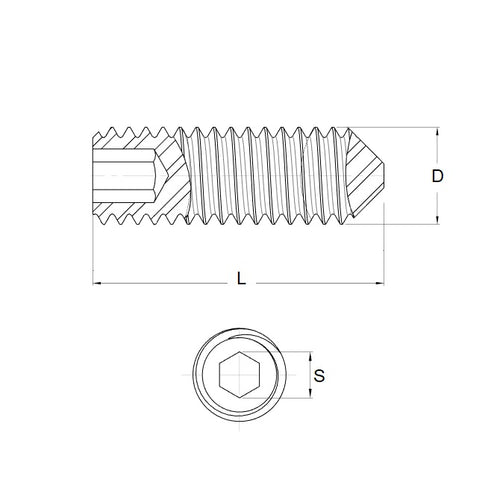

Product Data
- Thread Size : 1/4-20 UNC (6.35mm)
- Thread Length (L)
9.5
mm
(Equiv. 0.374 in.) - Type Cone Point
- Hex Key Size 3.18 (1/8)
- Pitch 1.270 mm
- Threads Per Inch 20 TPI
- Point Angle 90 ° +/- 2
- Material Carbon Steel
Product Compliance and Data
