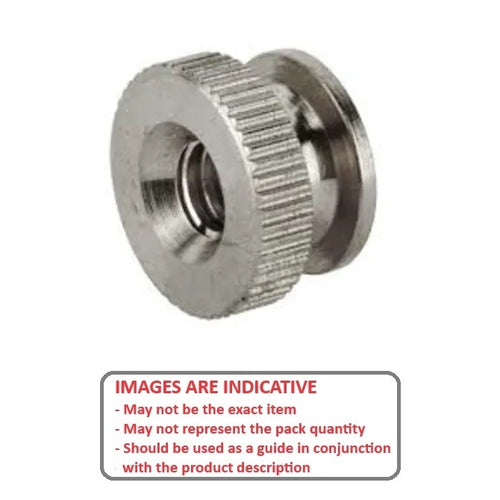

NT064C-THC-S3 - Datasheet

MBA

Product Data

• Thread Size : 1/4-20 UNC (6.35mm)

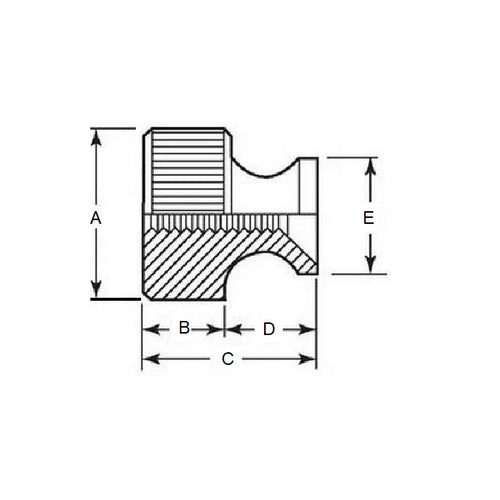

• Overall Length (C) 9.5 mm
  (Equiv. 0.374 in.)
• Head Width (B) 3.97 mm
  (Equiv. 0.156 in.)
• Head Diameter (A) 14.29 mm
• Collar Diameter (E) 11.91 mm
• Collar Height (D) 5.56 mm
• Material Stainless Steel 303 (Similar to A2, 304, 18-8)

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC
