KF064C-076-CB - Datasheet
MBA
Category Information

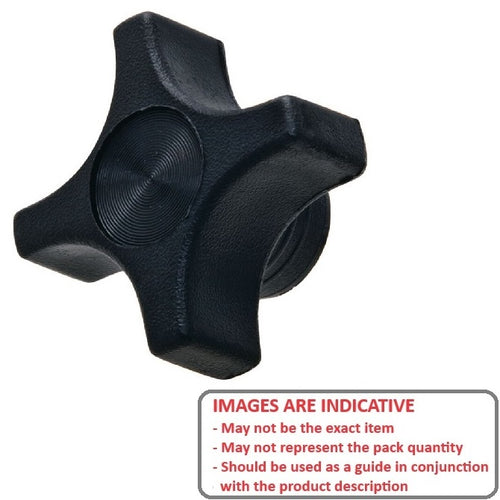

Knobs - Cross - Female - BlindBlind Female Cross Knobs. Black Plastic Knob with a Brass insert.
- 4 Prong cross knobs to go onto threads.
Product Data
- Thread Size : 1/4-20 UNC (6.35mm)

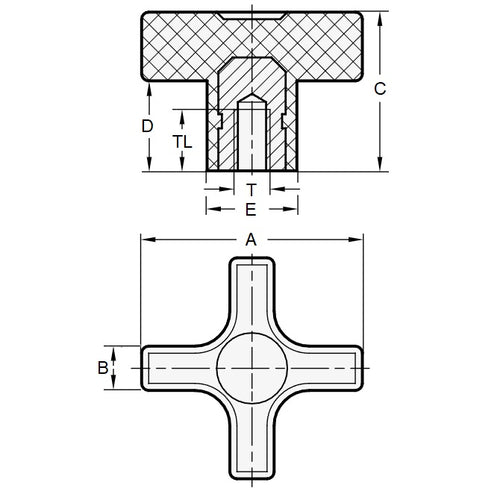

- Head Diameter (A)
76.20
mm
(Equiv. 3 in.) - Thread Length
15.9
mm
(Equiv. 0.626 in.) - Colour Black
- Hub Diameter (E) 22.23 mm
- Hub Length (D) 14.29 mm
- Knob Height (C) 31.75
- Material Brass
Product Compliance and Data
Additional Resources
Cross References
- DK-206
- DK206
