KF064C-057-CB - Datasheet
MBA
Category Information

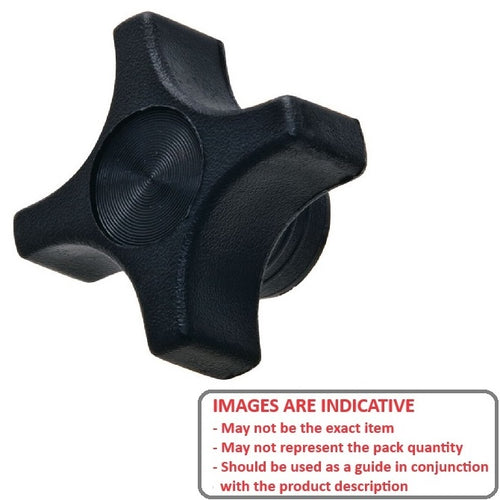

Knobs - Cross - Female - BlindBlind Female Cross Knobs. Black Plastic Knob with a Brass insert.
- 4 Prong cross knobs to go onto threads.
Product Data
- Thread Size : 1/4-20 UNC (6.35mm)

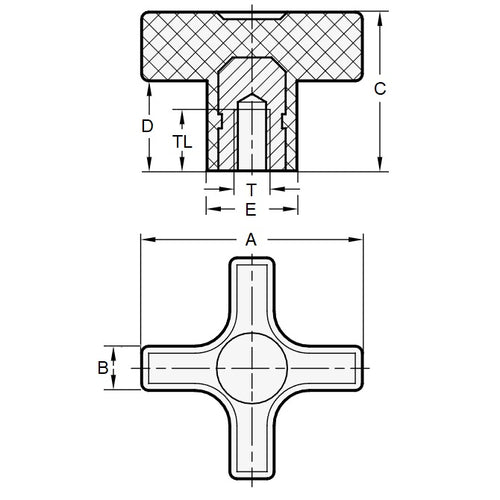

- Head Diameter (A)
57.15
mm
(Equiv. 2.25 in.) - Thread Length
11.1
mm
(Equiv. 0.437 in.) - Colour Black
- Hub Diameter (E) 25.40 mm
- Hub Length (D) 12.70 mm
- Knob Height (C) 25.40
- Material Brass
Product Compliance and Data
Additional Resources
Cross References
- 5993K76
- DK-135
- DK135
