Miniature Bearings Australia
THS064C-051-F-MI - Datasheet
MBA
Category Information
Screws - Thumb - Flat Key Head - StandardStandard Flat Key Head Thumb Screws. This is the main category in this series
- An expanded range may be available on special order. Please enquire.

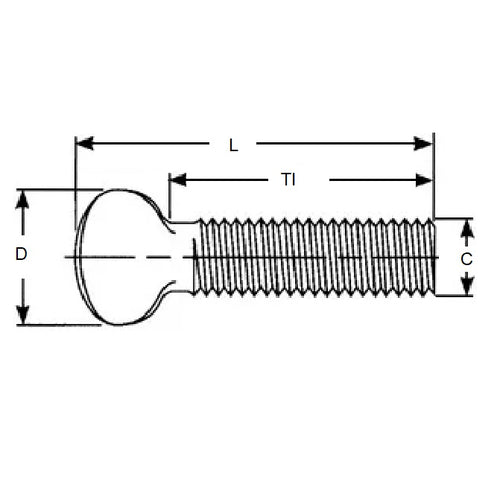

Product Data
- Thread Size (C) : 1/4-20 UNC (6.35mm)
- Thread Length (Tl)
50.80
mm
(Equiv. 2 in.) - Overall Length (L)
66.68
mm
(Equiv. 2.625 in.) - Head Diameter (D) 22.23 mm
- Finish Tumbled
- Head Type Flat Key
- Material Malleable Iron
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- MIT11
- MIT-11
