KM064C-044-CSL25 - Datasheet

MBA

Category Information

Knobs - Cross - Male

Male Cross Knobs. Black Plastic Knob with thread.

  • 4 Prong cross knobs with threads.

Product Data

  • Thread Size : 1/4-20 UNC (6.35mm)
  • Head Diameter (A) 44.45 mm
    (Equiv. 1.75 in.)
  • Thread Length 25.4 mm
    (Equiv. 1 in.)
  • Knob Length (C) 25.40 mm
  • Hub Diameter (E) 20.64 mm
  • Hub Length (D) 12.70 mm
  • Material Plated Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • DK-675
  • DK675
View full details

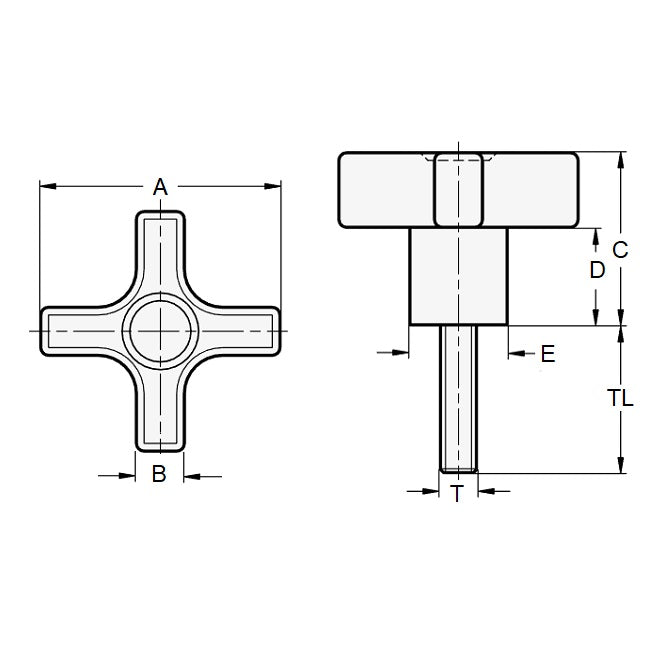

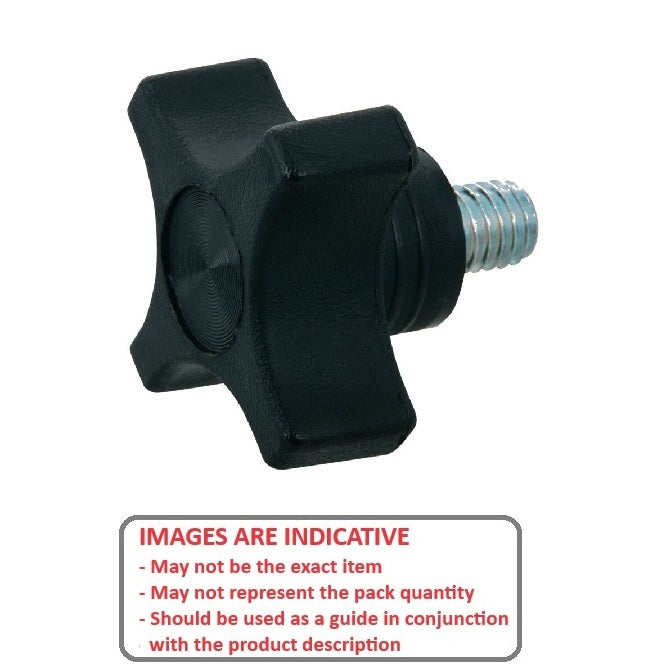

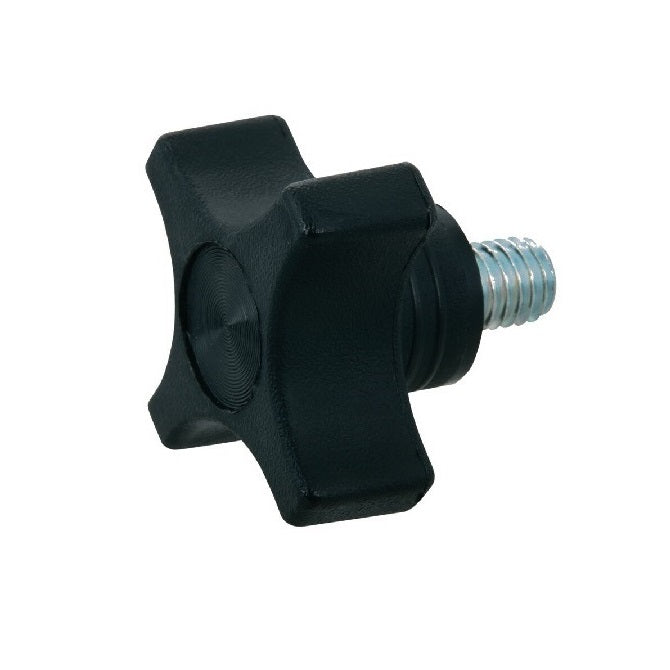

KM064C-044-CSL25DiagramKM064C-044-CSL25Image
