Miniature Bearings Australia
KF064C-044-CH - Datasheet
MBA
Category Information

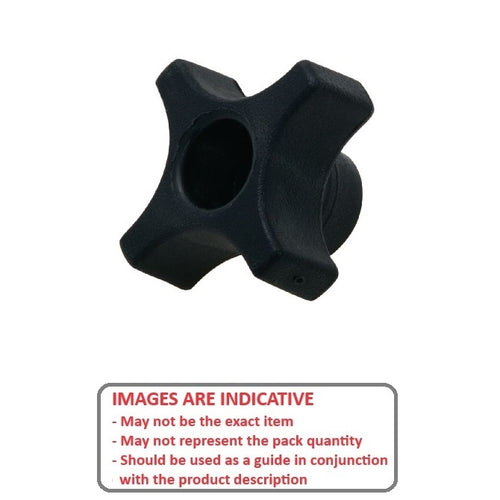

Knobs - Cross - Female - Through HoleThrough Hole Female Cross Knobs. Black Plastic Knob with a Brass insert.
- 4 Prong cross knobs to go onto threads. Through Hole.
Product Data
- Thread Size : 1/4-20 UNC (6.35mm)

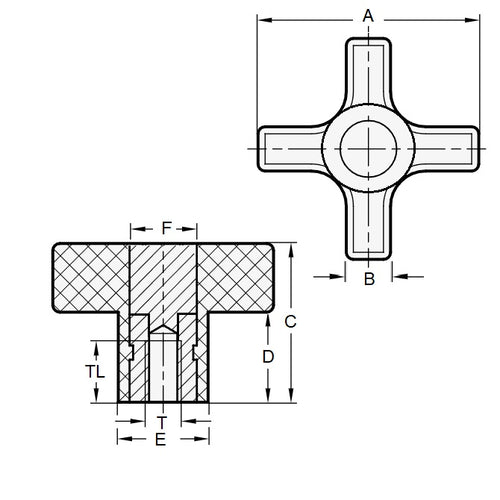

- Head Diameter (A)
44.45
mm
(Equiv. 1.75 in.) - Thread Length
12.7
mm
(Equiv. 0.5 in.) - Colour Black
- Hub Diameter (E) 19.05 mm
- Hub Length (D) 11.11 mm
- Knob Height (C) 25.40
- Material Brass
Product Compliance and Data
Additional Resources
Cross References
- 5993K54
- DK-1193
- DK1193
