KF064C-040-CH-SS - Datasheet

MBA

Category Information

Knobs - Cross - Female - Through Hole

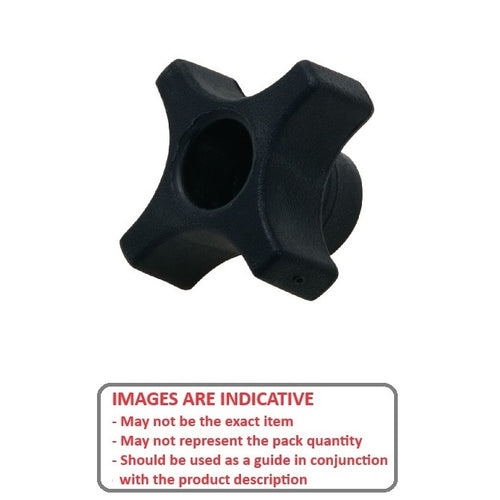

Through Hole Female Cross Knobs. Black Plastic Knob with a Brass insert.

  • 4 Prong cross knobs to go onto threads. Through Hole.

Product Data

  • Thread Size : 1/4-20 UNC (6.35mm)

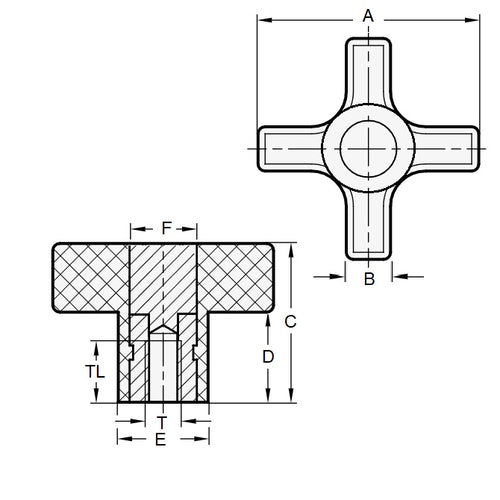

  • Head Diameter (A) 40.13 mm
    (Equiv. 1.58 in.)
  • Thread Length 9.5 mm
    (Equiv. 0.374 in.)
  • Colour Black
  • Hub Diameter (E) 16.00 mm
  • Hub Length (D) 12.45 mm
  • Knob Height (C) 24.13
  • Material Stainless Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • JCL219
  • JCL-219
