KF064C-040-CS-SS - Datasheet
MBA
Category Information

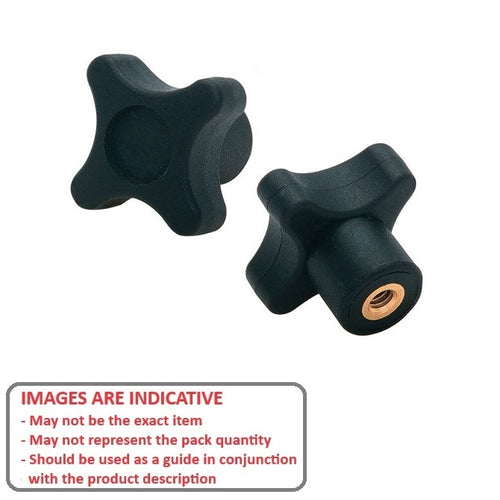

Knobs - Cross - Female - StandardStandard Female Cross Knobs. Black Plastic Knob with a Brass insert.
- 4 Prong cross knobs to go onto threads.
Product Data
- Thread Size : 1/4-20 UNC (6.35mm)

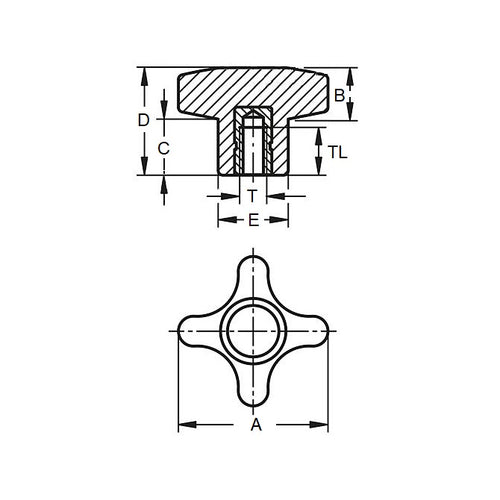

- Head Diameter (A)
40.13
mm
(Equiv. 1.58 in.) - Thread Length
9.5
mm
(Equiv. 0.374 in.) - Colour Black
- Hub Diameter (C) 16.00 mm
- Hub Length (D) 12.45 mm
- Knob Height (B) 24.13
- Material Stainless Steel
Product Compliance and Data
Additional Resources
Cross References
- JCL207
- JCL-207
