PLST-064C-127-HKS-018 - Datasheet
MBA
Category Information

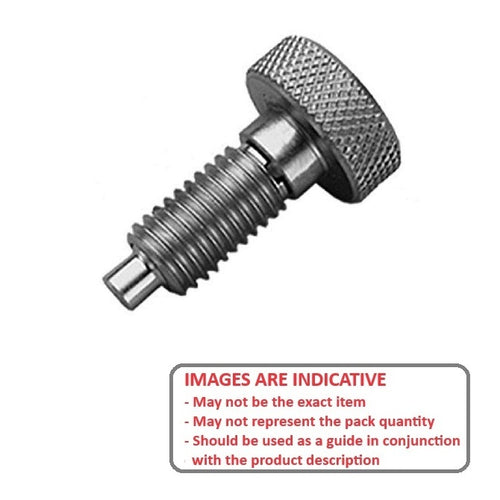

Plungers - Spring - Knurled Handle - Non Locking - StainlessStainless Non Locking Knurled Handle Spring Plungers. Items shown with Long-Lok have a dry threadlocking sealant applied to thread.
Product Data
- Thread Size (A) : 1/4-20 UNC (6.35mm)
- Thread Length (B)
12.7
mm
(Equiv. 0.5 in.) - Initial Pressure (F1) 4.5 N
- Final Pressure (F2) 17.8 N
- Tip Diameter (D) 3.2 mm
- Tip Length (C) 3.2 mm
- Head Length (F) 7.9
- Material Stainless Steel
Product Compliance and Data
Additional Resources
Cross References
- 84935A37
- PHR11SS
- PHR-11SS
