Miniature Bearings Australia
KF064C-033-6L-BRB - Datasheet
MBA
Category Information

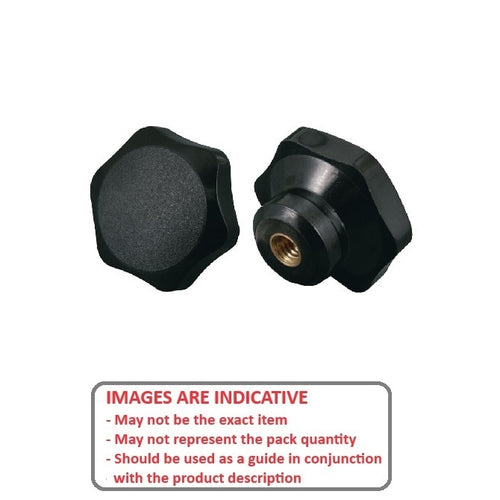

Knobs - Lobe - Six Lobe - Female - StandardStandard Female Six Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size : 1/4-20 UNC (6.35mm)

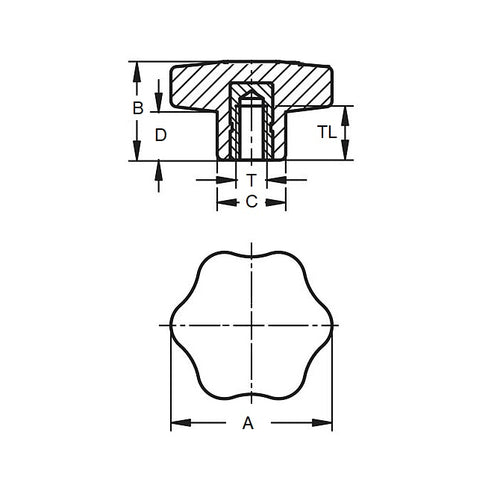

- Head Diameter (A)
33.02
mm
(Equiv. 1.3 in.) - Thread Length
9.9
mm
(Equiv. 0.39 in.) - Colour Black
- Hub Diameter (C) 13.97 mm
- Hub Length (F) 10.92 mm
- Knob Height (B) 22.10 mm
- Material Brass
Product Compliance and Data
Additional Resources
Cross References
- RST151
- RST-151
