KF064C-032-CS - Datasheet
MBA
Category Information

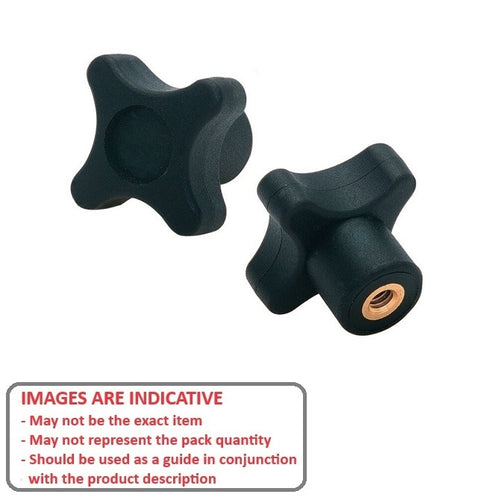

Knobs - Cross - Female - StandardStandard Female Cross Knobs. Black Plastic Knob with a Brass insert.
- 4 Prong cross knobs to go onto threads.
Product Data
- Thread Size : 1/4-20 UNC (6.35mm)

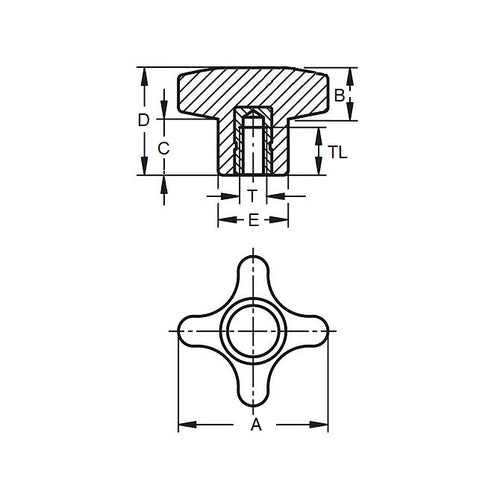

- Head Diameter (A)
32.00
mm
(Equiv. 1.26 in.) - Thread Length
9.9
mm
(Equiv. 0.39 in.) - Colour Black
- Hub Diameter (C) 13.97 mm
- Hub Length (D) 8.89 mm
- Knob Height (B) 20.07
- Material Brass
Product Compliance and Data
Additional Resources
Cross References
- RST93
- RST-93
