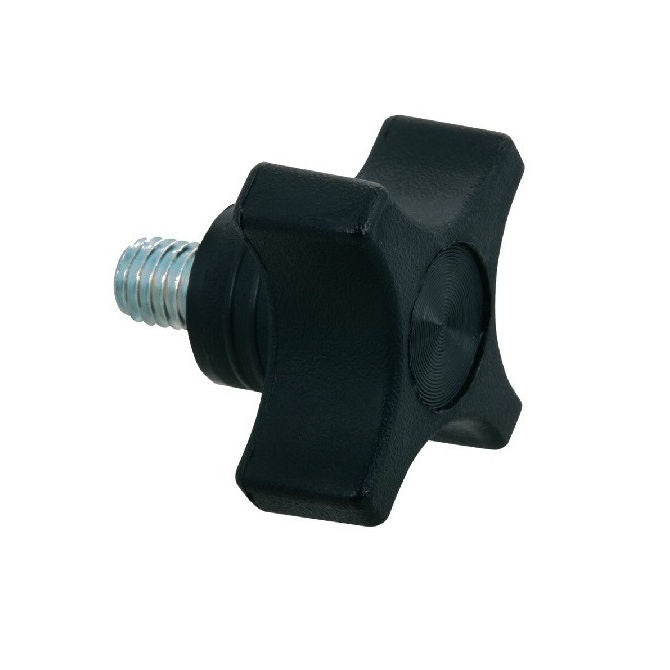

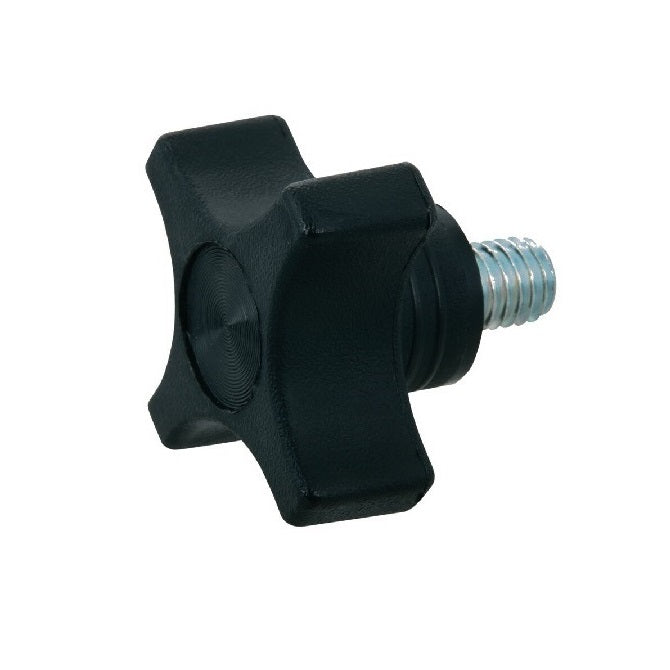

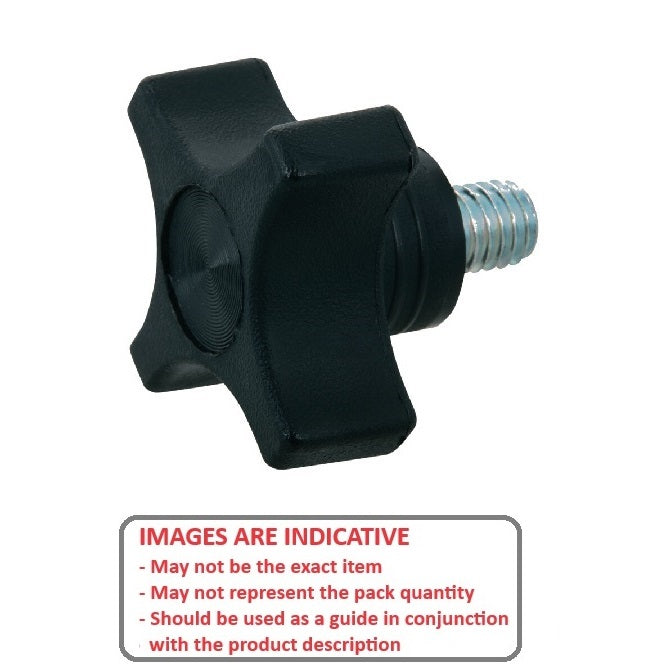

KM064C-032-CSTS-SS13 - Datasheet

MBA

Product Data

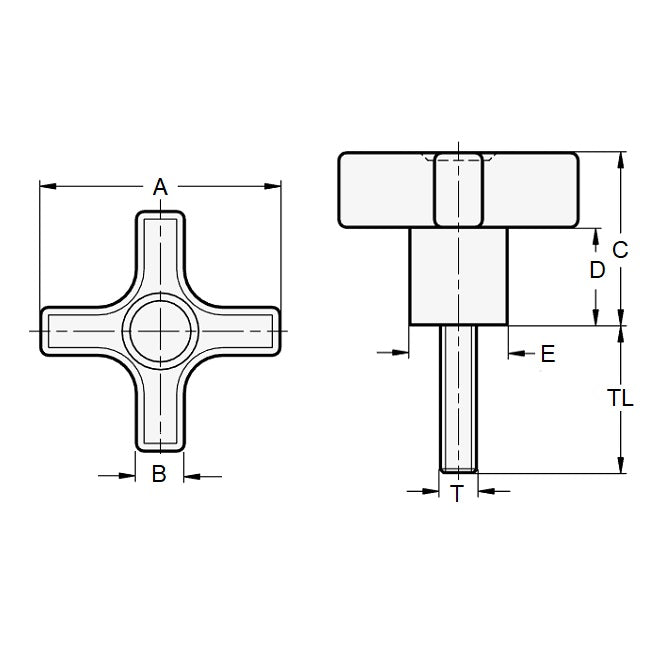

• Thread Size : 1/4-20 UNC (6.35mm)
• Head Diameter (A) 32.00 mm
  (Equiv. 1.26 in.)
• Thread Length 13.0 mm
  (Equiv. 0.512 in.)
• Knob Length (C) 11.94 mm
• Hub Diameter (E) 14.99 mm
• Hub Length (D) 23.11 mm
• Material Stainless Steel

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Knobs PDF Quick Guide by Thread Size


• Measuring Small Parts
• Metalworking Resource Guide

Cross References

• JCL227
• JCL-227
