KF064C-032-7L-SP - Datasheet
MBA
Category Information

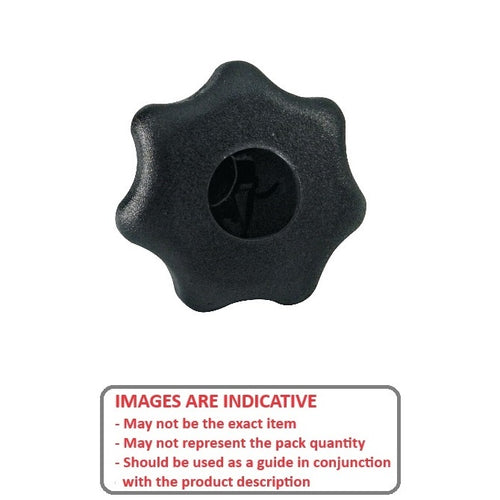

Knobs - Lobe - Seven Lobe - Female - StandardStandard Female Seven Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size : 1/4-20 UNC (6.35mm)

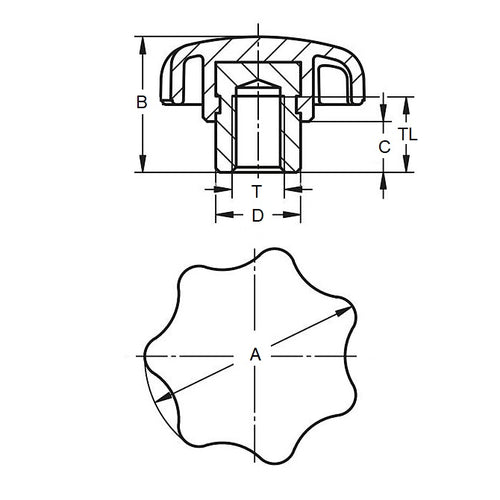

- Head Diameter (A)
32.00
mm
(Equiv. 1.26 in.) - Thread Length
11.9
mm
(Equiv. 0.469 in.) - Colour Black
- Hub Diameter (C) 11.94 mm
- Hub Length (D) 8.38 mm
- Knob Height (B) 20.07 mm
- Material Plated Steel Hub
Product Compliance and Data
Additional Resources
Cross References
- KBP-296
- KBP296
