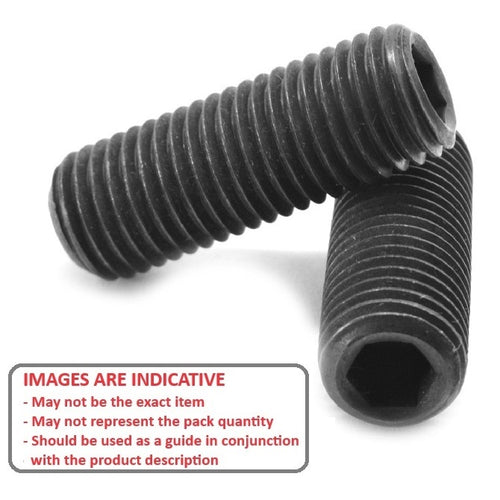

SS064C-0254-AS - Datasheet

Brighton Best

Product Data

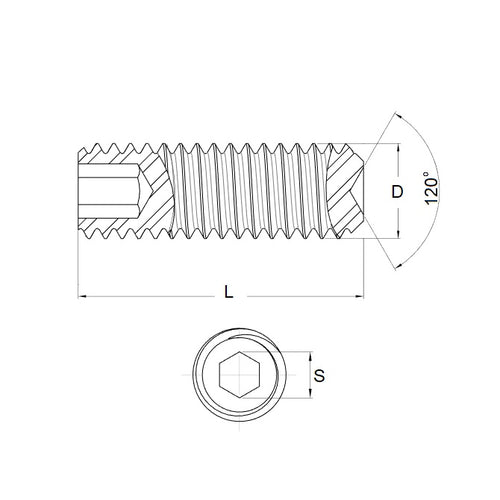

• Thread Size : 1/4-20 UNC (6.35mm)
• Thread Length (L) 25.4 mm
  (Equiv. 1 in.)
• Type Standard Cup Point
• Hex Key Size 3.18 (1/8)
• Pitch 1.270 mm
• Threads Per Inch 20 TPI
• Finish Hardened, Black Oxide Coated
• Material Carbon Steel - Hardened GD14.9

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Socket Set Screws Master PDF

• Assortment Kits


• Measuring Small Parts
• Metalworking Resource Guide

• Screws & Nuts Catalogue
• Shoulder Screws Catalogue
• Socket Set (Grub) Screws Catalogue
• Thumb Screws & Thumb Nuts Catalogue
• Thread Size Chart - Combined Imperial & Metric

Cross References

• 91375A542
• Small Parts SSAS-1420-16
• BRB-101325P
• BRB101325P
• HK-32128
• HK32128
• SSAS142016
