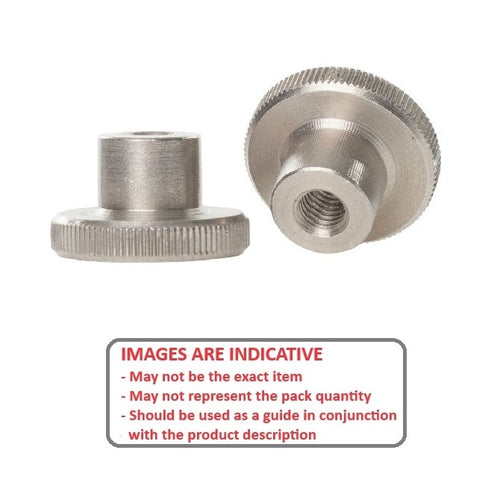

NT064C-TH2519-S3 - Datasheet

MBA

Product Data

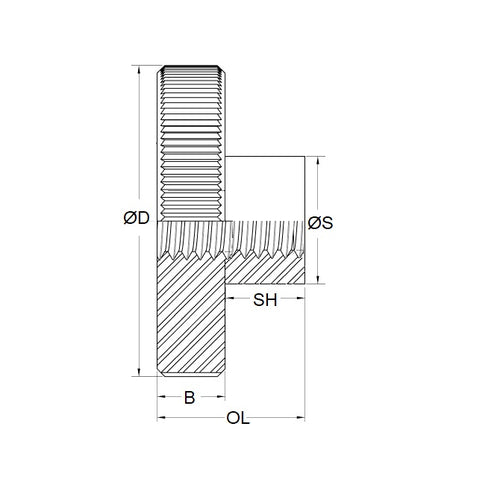

• Thread Size : 1/4-20 UNC (6.35mm)
• Overall Length 25.4 mm
  (Equiv. 1 in.)
• Head Width (B) 6.35 mm
  (Equiv. 0.25 in.)
• Head Diameter 25.40 mm
• Shoulder Diameter 12.70 mm
• Shoulder Height 19.05 mm
• Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Thumb Screws and Nuts PDF Quick Guide

• Pan Head Screws

• Screws


• Measuring Small Parts
• Metalworking Resource Guide

• Metric Wingnut Dimensions
• Screws & Nuts Catalogue
• Thread Size Chart - Combined Imperial & Metric

Cross References

• 91833A138
• SKN-80
• SKN80
