Miniature Bearings Australia

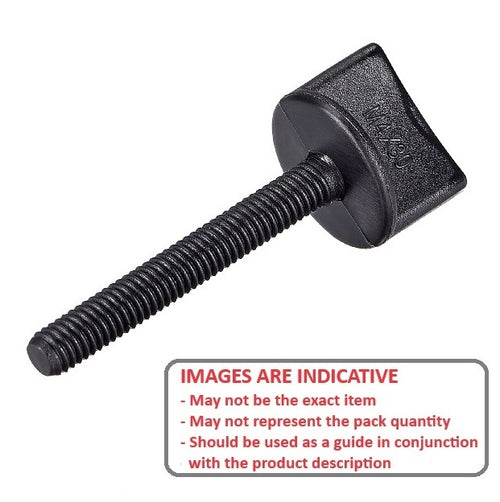

THS064C-025-H-CB - Datasheet
MBA
Category Information
Screws - Thumb - Half TurnHalf Turn Thumb Screws. This is the main category in this series
- An expanded range may be available on special order. Please enquire.
Product Data

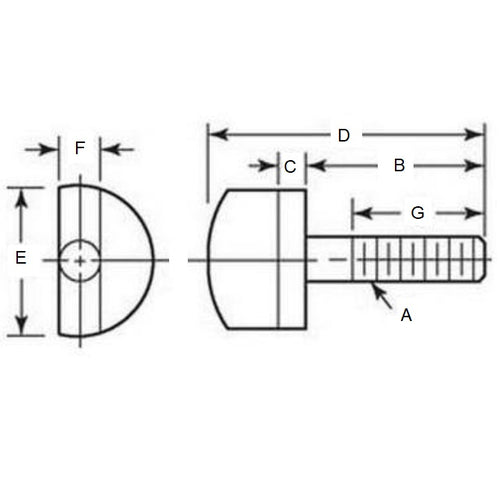

- Thread Size (A) : 1/4-20 UNC (6.35mm)
- Thread Length (G)
25.40
mm
(Equiv. 1 in.) - Overall Length (D)
50.80
mm
(Equiv. 2 in.) - Head Diameter (E/F) 19.05 / 6.35 mm
- Finish Black Oxide
- Material Steel
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- HTS705
- HTS-705
