THS064C-025-W-CS-WF - Datasheet
MBA
Category Information

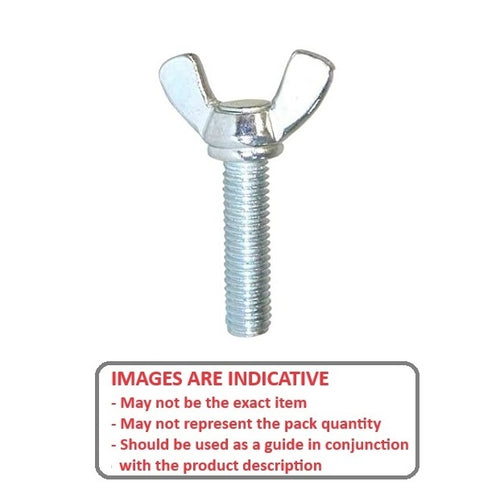

Screws - Thumb - Wing - Washer FaceWasher Face Wing Thumb Screws. Wing head malleable iron screws with an integral washer
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size : 1/4-20 UNC (6.35mm)
- Thread Length (D)
25.40
mm
(Equiv. 1 in.) - Overall Length (C)
46.04
mm
(Equiv. 1.813 in.) - Head Diameter (A) 31.75 mm
- Head Height (B) 20.64 mm
- Finish Tumbled
- Shoulder Diameter (E) 14.29 mm
- Material Malleable Iron
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- MIT87
- MIT-87
