THS064C-025-K-3-N - Datasheet
MBA
Category Information

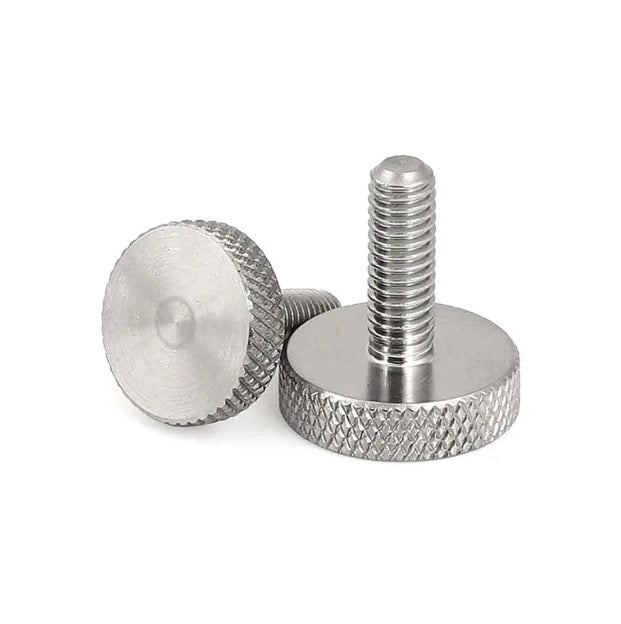

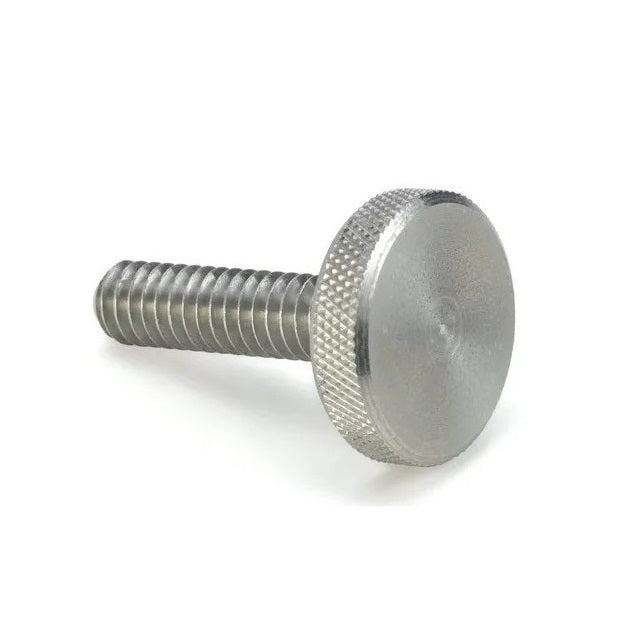

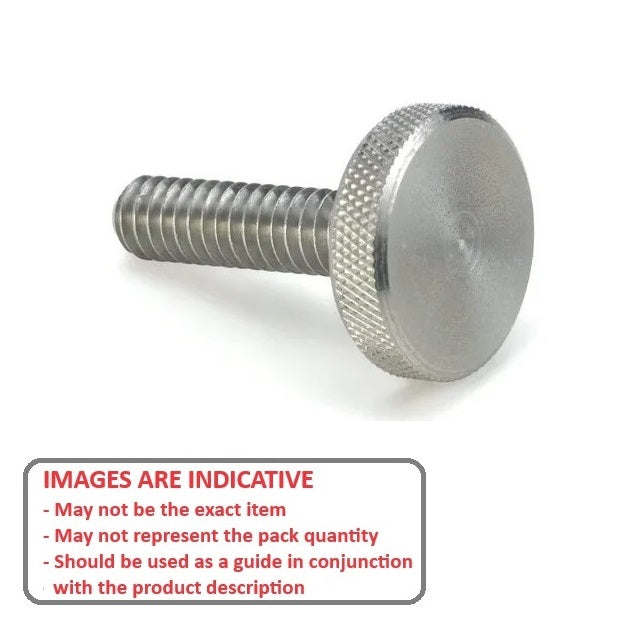

Screws - Thumb - Knurled - Stainless - Slim HeadSlim Head Stainless Knurled Thumb Screws. This is the main category in this series
- An expanded range may be available on special order. Please enquire.
Product Data

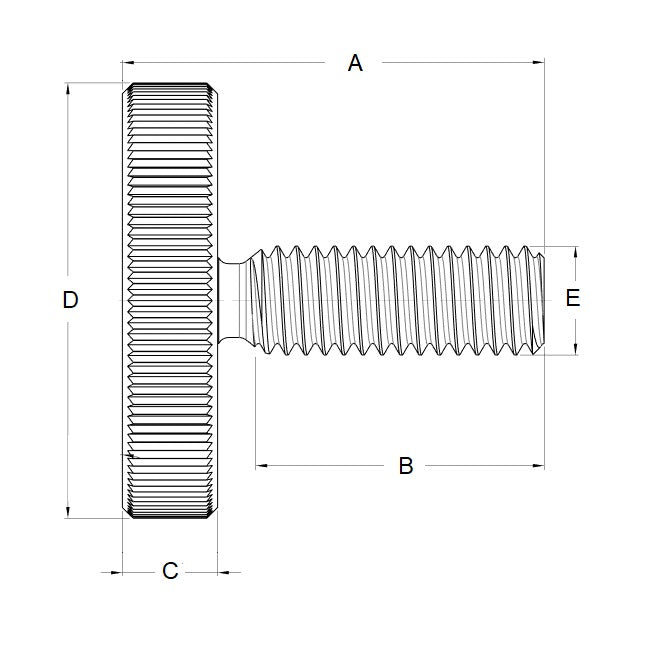

- Thread Size (E) : 1/4-20 UNC (6.35mm)
- Thread Length (B)
25.40
mm
(Equiv. 1 in.) - Overall Length (A)
36.51
mm
(Equiv. 1.437 in.) - Head Diameter (D) 19.05 mm
- Head Type Knurled
- Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- KTS-8291
- KTS8291
