Miniature Bearings Australia
KF064C-025-3L-P - Datasheet
MBA
Category Information

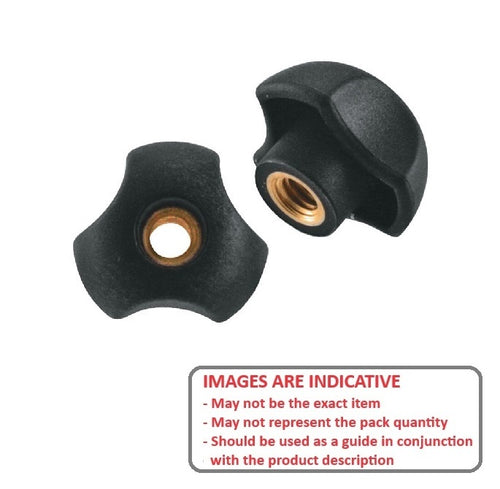

Knobs - Lobe - Three Lobe - Female - Through HoleThrough Hole Female Three Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size : 1/4-20 UNC (6.35mm)

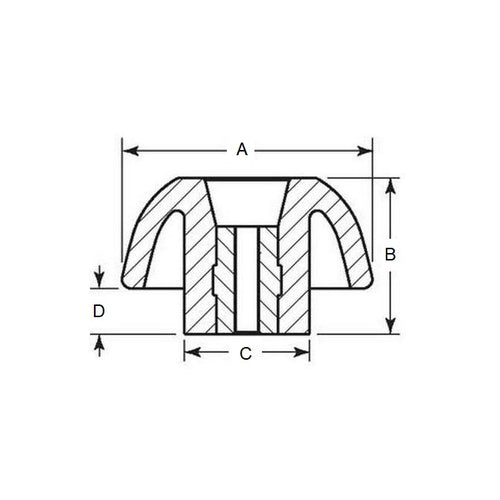

- Head Diameter (A)
24.89
mm
(Equiv. 0.98 in.) - Thread Length
10.9
mm
(Equiv. 0.429 in.) - Colour Black
- Hub Diameter (C) 12.95 mm
- Hub Length (D) 5.08 mm
- Length (B) 16.00 mm
- Material Brass
Product Compliance and Data
Additional Resources
Cross References
- RST121
- RST-121
