PLST-064C-318-HLSL-011 - Datasheet

MBA

Category Information

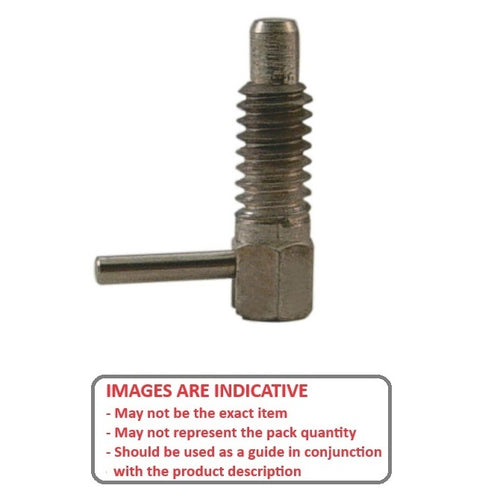

Plungers - Spring - L Handle - Locking - Stainless

Stainless Locking L Handle Spring Plungers. Items shown with Long-Lok have a dry threadlocking sealant applied to thread.

  • A compact mechanical component with a spring-loaded ball or pin inside a housing that applies consistent, predictable force. Internal spring compresses when pressure is applied to the ball or pin, allowing it to settle into designated positions or recess.
  • Provides a reliable holding or locating mechanism in various industrial applications where precise alignment or securing of parts is needed.
  • Also known as ball plungers or spring-loaded pins.

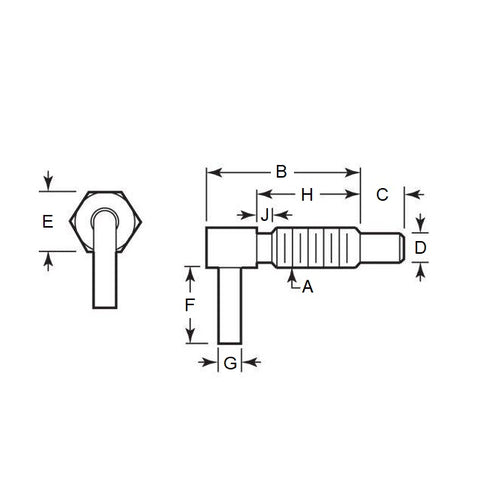

Product Data

  • Thread Size (A) : 1/4-20 UNC (6.35mm)
  • Thread Length (B) 20.3 mm
    (Equiv. 0.799 in.)
  • Initial Pressure (F1) 2.2 N
  • Final Pressure (F2) 11.1 N
  • Tip Diameter (D) 4.1 mm
  • Tip Length (C) 9.7 mm
  • Body Length (B) 31.8 mm
  • Handle Diameter (G) 2.3 mm
  • Handle Length (F) 12.7 mm
  • Material Stainless Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • 3403A19
  • SSFR25
  • SSFR-25
