PLST-064C-159-HLPSL-011 - Datasheet
MBA
Category Information
Plungers - Spring - L Handle - Locking - Stainless-PhenolicStainless-Phenolic Locking L Handle Spring Plungers. Stainless body with phenolic nose
- A compact mechanical component with a spring-loaded ball or pin inside a housing that applies consistent, predictable force. Internal spring compresses when pressure is applied to the ball or pin, allowing it to settle into designated positions or recess.
- Provides a reliable holding or locating mechanism in various industrial applications where precise alignment or securing of parts is needed.
- Also known as ball plungers or spring-loaded pins.
- Items shown with Long-Lok have a dry threadlocking sealant applied to thread.
Product Data

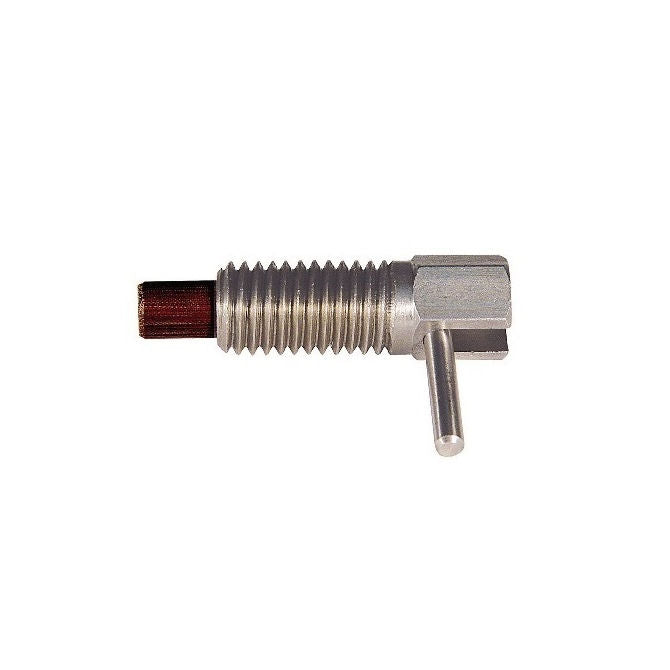

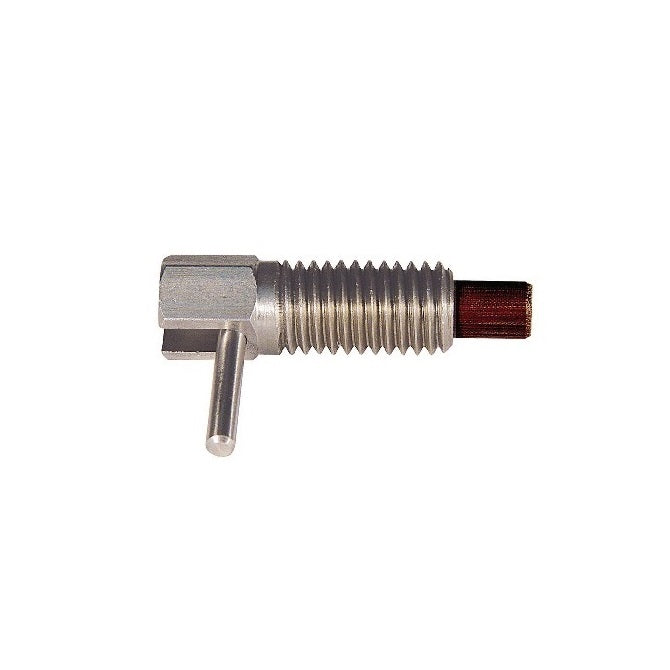

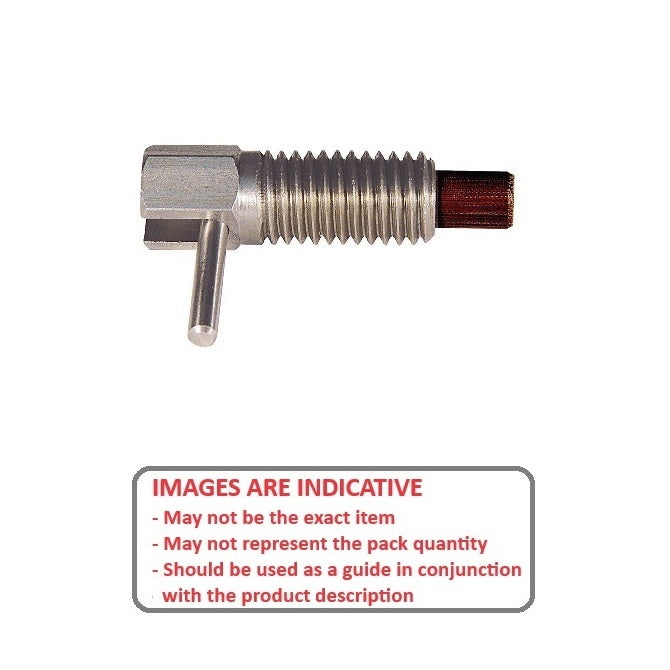

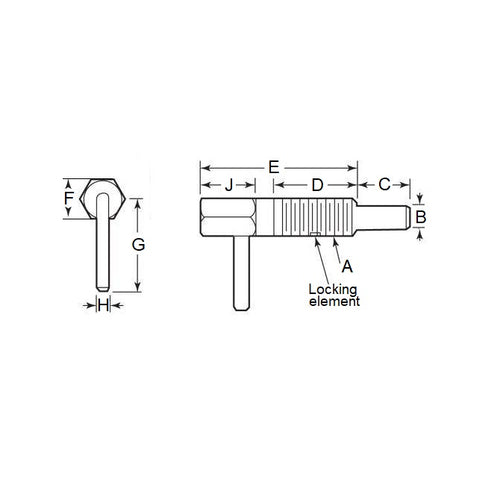

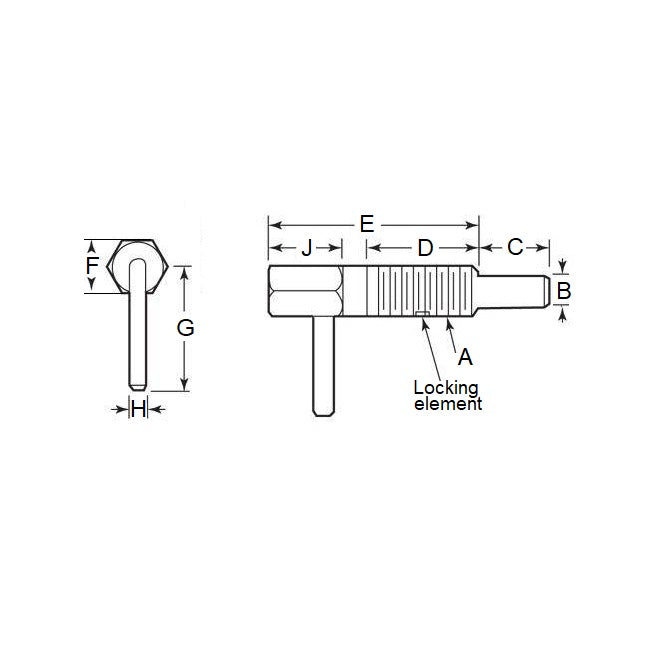

- Thread Size (A) : 1/4-20 UNC (6.35mm)
- Thread Length (D)
15.9
mm
(Equiv. 0.626 in.) - Initial Pressure (F1) 2.2 N
- Final Pressure (F2) 11.1 N
- Tip Diameter (B) 4.0 mm
- Tip Length (C) 9.5 mm
- Handle Length (G) 23.8 mm
- Handle Diameter (H) 2.4 mm
- Head Length (J) 6.4 mm
- Material Stainless Steel Body with Phenolic
Product Compliance and Data
Additional Resources
Cross References
- FR-5
- FR5
