SS064C-0127-S3-NT - Datasheet

MBA

Category Information

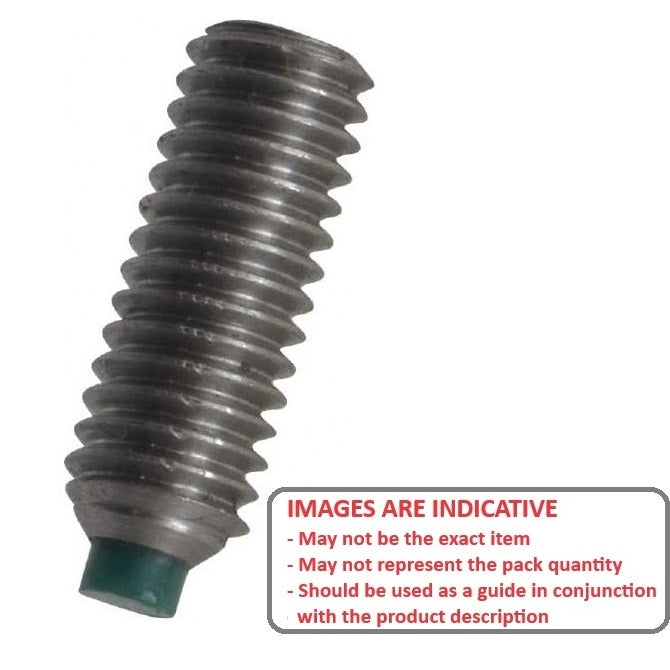

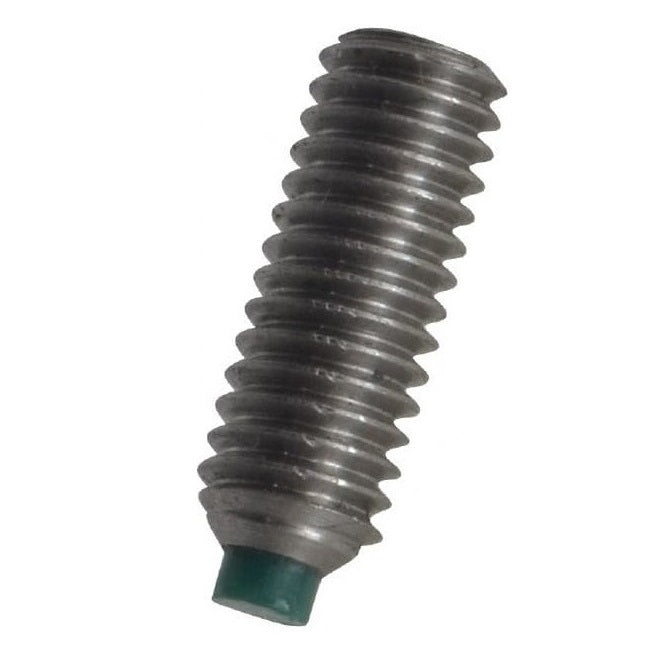

Socket Set Screws - Nylon Tipped - 304 Stainless Steel

304 Stainless Steel Nylon Tipped Socket Set Screws. Nylon tipped grub screws. Soft tip compresses into threads to become self locking. Helps to prevent shaft damage.

  • Socket driven grub screws that uses a non-metallic tip made of Nylon to prevent damage to the shaft it secures.
  • Ideal for joining a pulley, gear, or collar to a shaft without scratching or scarring, and the nylon tip can also provide a self-locking effect by increasing friction and absorbing vibration, preventing loosening.

Product Data

  • Thread Size : 1/4-20 UNC (6.35mm)
  • Thread Length (L) 12.7 mm
    (Equiv. 0.5 in.)
  • Type Nylon Tipped
  • Overall Length (L + L1) 14.3 mm
  • Tip Diameter (d) 3.2 mm
  • Tip Length (L1) 1.6
  • Pitch 1.270 mm
  • Threads Per Inch 20 TPI
  • Drive Type Socket
  • Material Stainless Steel 18-8 (Similar to A2, 303, 304)
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • 90291A537
  • BTS-1035
  • BTS1035
