NT064C-TH2506-S3 - Datasheet
MBA
Category Information

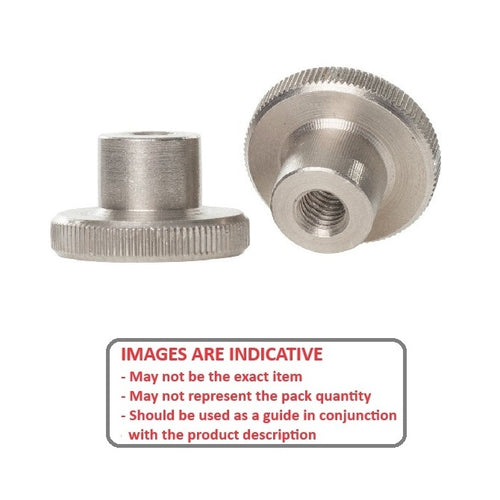

Nuts - Thumb - BasicBasic Thumb Nuts. This is the main category in this series
Product Data

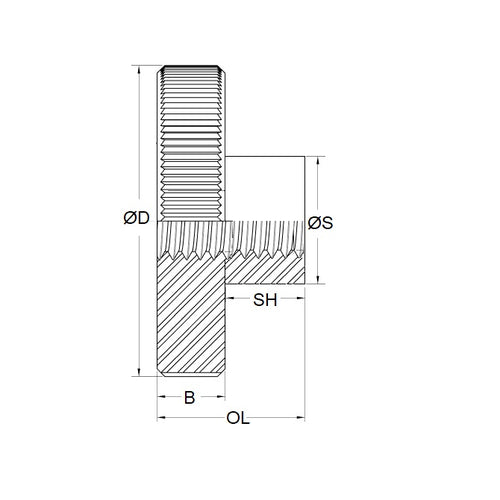

- Thread Size : 1/4-20 UNC (6.35mm)
- Overall Length
12.7
mm
(Equiv. 0.5 in.) - Head Width (B)
6.35
mm
(Equiv. 0.25 in.) - Head Diameter 25.40 mm
- Shoulder Diameter 12.70 mm
- Shoulder Height 6.35 mm
- Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- SKN70
- SKN-70
