BEB-1400RS - Datasheet

MBA

Category Information

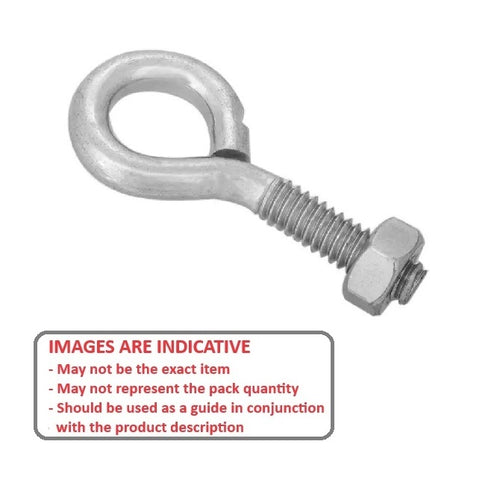

Eye Bolts - Bent - Stainless Steel

Stainless Steel Bent Eye Bolts. Not recommended for lifting. 304 stainless steel.

  • Complete with nut.
  • Rolled threads.

Product Data

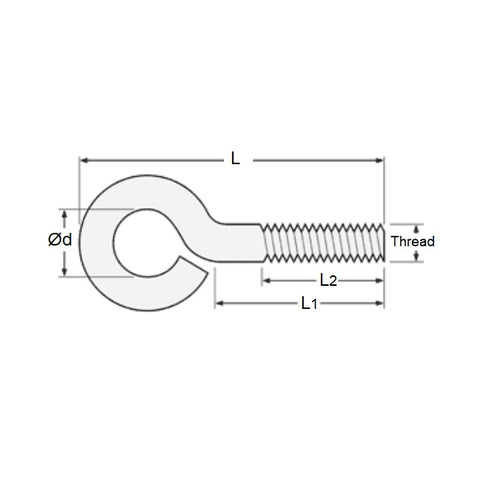

  • Thread : 1/4-20 UNC (6.35mm)
  • Overall Length 50.800 mm
    (Equiv. 2 in.)
  • Shank Length 25.400 mm
    (Equiv. 1 in.)
  • Thread Length 22.225 mm
  • Eye Inside Diameter 12.700 mm
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • 9489T56
