BEB-450RS - Datasheet

MBA

Category Information

Eye Bolts - Bent - Steel

Steel Bent Eye Bolts. Not recommended for lifting.

  • Carbon steel zinc plated.
  • Complete with nut.
  • Rolled threads.

Product Data

  • Thread : 1/4-20 UNC (6.35mm)
  • Overall Length 101.600 mm
    (Equiv. 4 in.)
  • Shank Length 76.200 mm
    (Equiv. 3 in.)
  • Thread Length 38.100 mm
  • Eye Inside Diameter 12.700 mm
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • 9489T22
    View full details

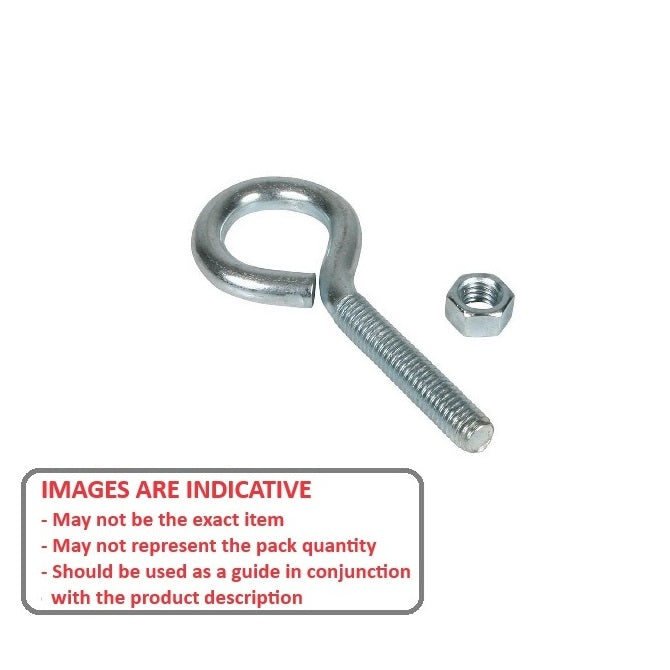

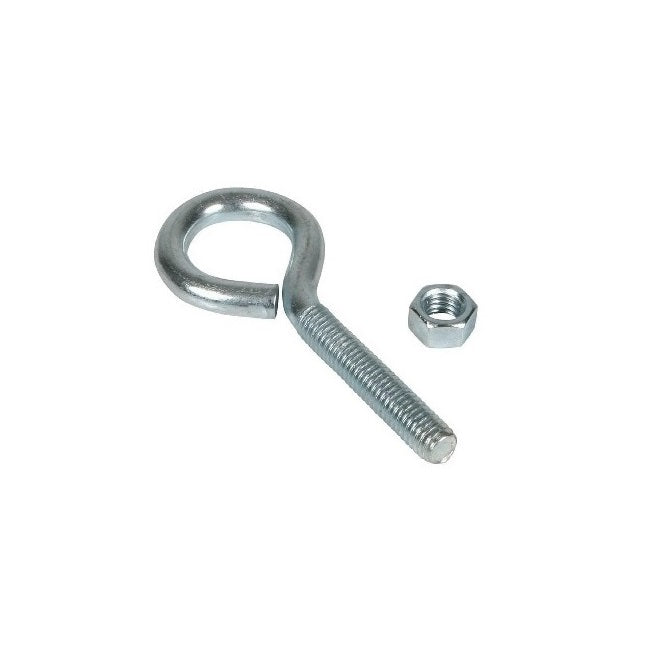

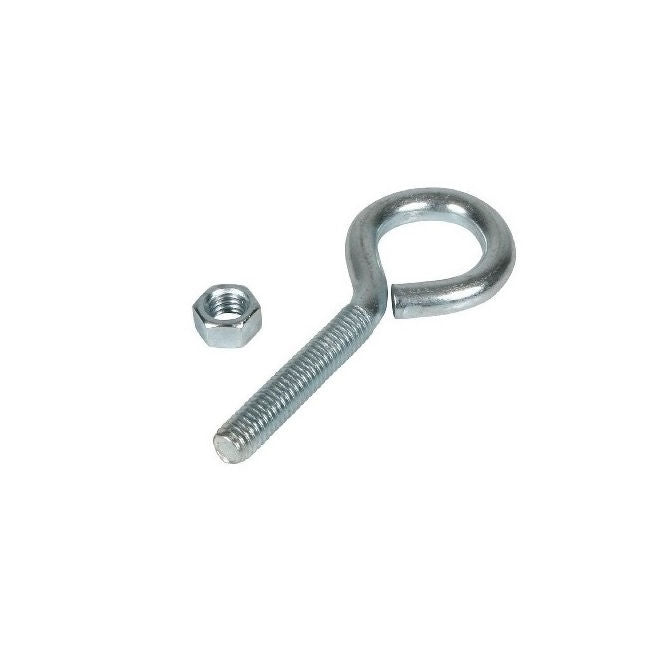

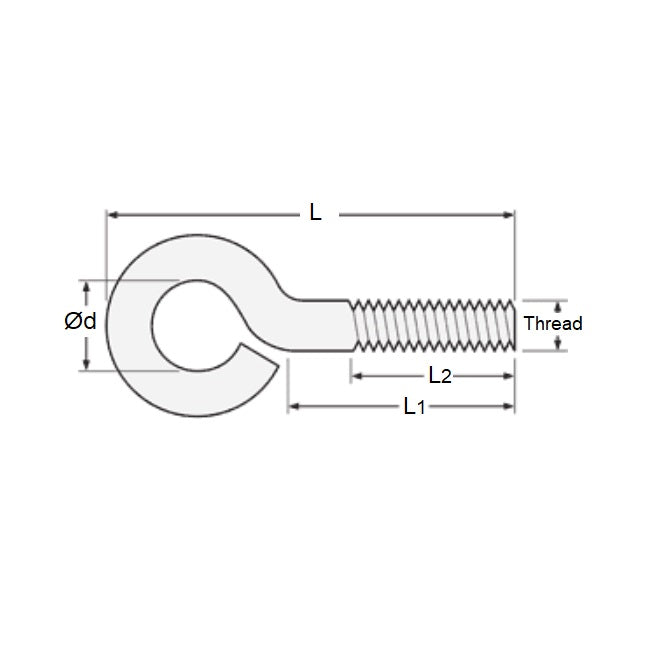

    BEB-450RSDiagramBEB-450RSImage
