SK064W-032-PH-CZ - Datasheet

MBA

Category Information

Screws - Countersunk - Phillips - Steel

Steel Phillips Countersunk Screws. Flat Head Countersunk UNC - UNF - METRIC

  • An expanded range may be available on special order. Please enquire.
  • Nuts sold seperately - See Nuts.

Product Data

  • Thread Size (C) : 1/4-20 BSW (6.35mm)
  • Overall Length (L) 31.8 mm
    (Equiv. 1.252 in.)
  • Material Zinc Plated Steel
  • Max Head Diameter (A) 12.12 mm
  • Max Head Height 4.1 mm
  • Type Countersunk / Philips
  • Pitch 1.270 mm
  • Threads Per Inch 20 TPI
  • Material Zinc Plated Steel
Country of Origin: TW

Product Compliance and Data

Additional Resources

Cross References

  • Hitech MSCPZP14114
View full details

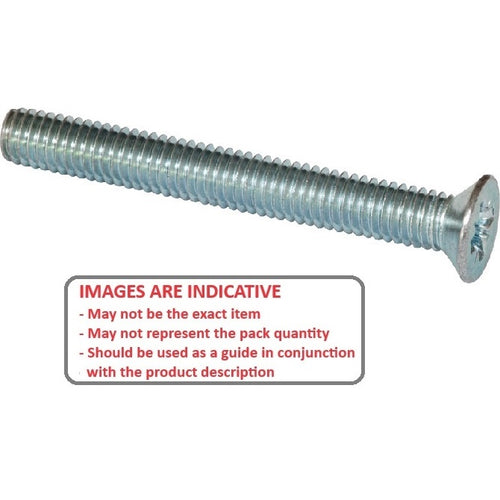

SK064W-032-PH-CZDiagramSK064W-032-PH-CZImage
