AR104RS - Datasheet

MBA

Category Information

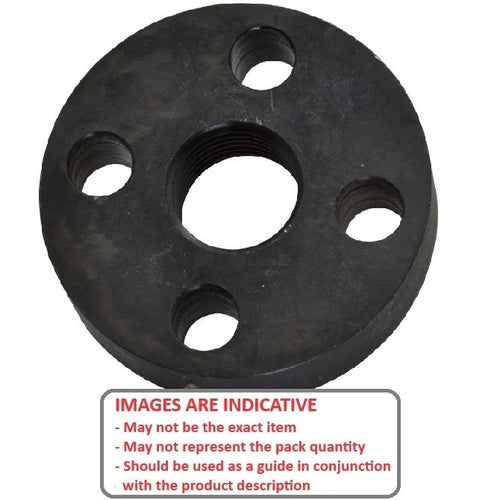

Leadscrew Nut Flanges - For Acme Nuts

For Acme Nuts Leadscrew Nut Flanges. Flanges for Acme leadscrew thread nuts imperial

  • These flanges are screwed onto the outer thread of the red leadscrew nuts
  • This provides a mounting surface to enable location of the leadscrew nut on the surface to be moved

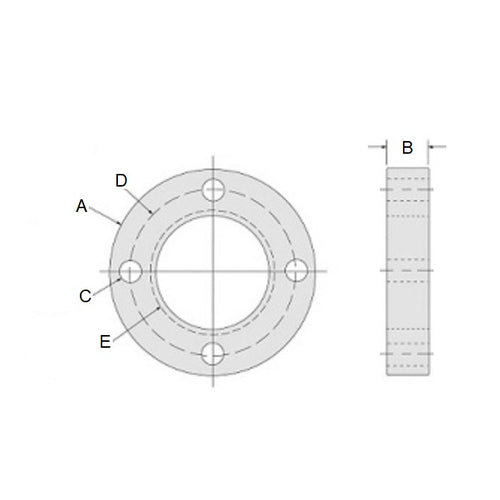

Product Data

  • Suitable Nut Mounting Thread : 1.3/8-16
  • Flange OD 70.104 mm
  • Flange Thickness 13.462 mm
  • Mounting Hole Diameter 57.404 mm
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • Reid Tool® AR-104
    • AR104
