THS127C-076-W-CS - Datasheet
MBA
Category Information

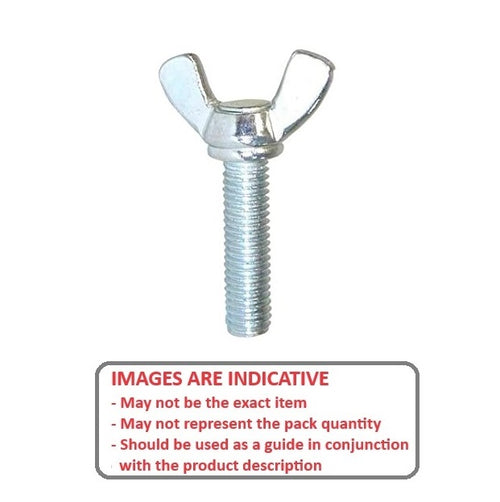

Screws - Thumb - Wing - StandardStandard Wing Thumb Screws. This is the main category in this series
- An expanded range may be available on special order. Please enquire.

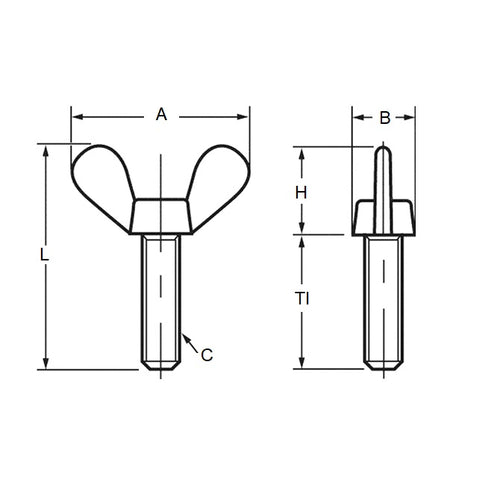

Product Data
- Thread Size (C) : 1/2-13 UNC (12.7mm)
- Thread Length (Tl)
76.20
mm
(Equiv. 3 in.) - Overall Length (L)
101.60
mm
(Equiv. 4 in.) - Head Diameter (A) 57.15 mm
- Head Height (H) 25.40 mm
- Shoulder Diameter (B) 19.05 mm
- Material Steel
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- MIT81
- MIT-81
