Miniature Bearings Australia
KM127C-063-5LSFT38-ST - Datasheet
MBA
Category Information

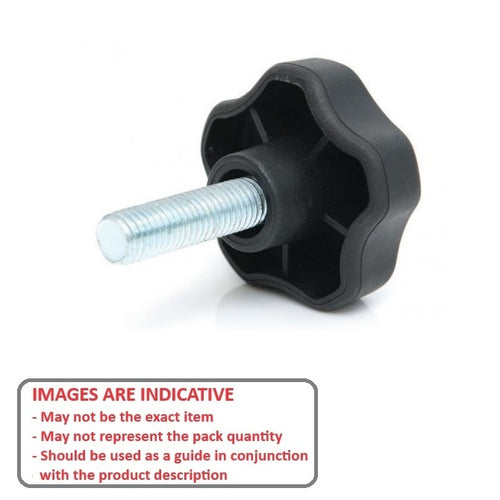

Knobs - Lobe - Five Lobe - Male - Soft TouchSoft Touch Male Five Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data

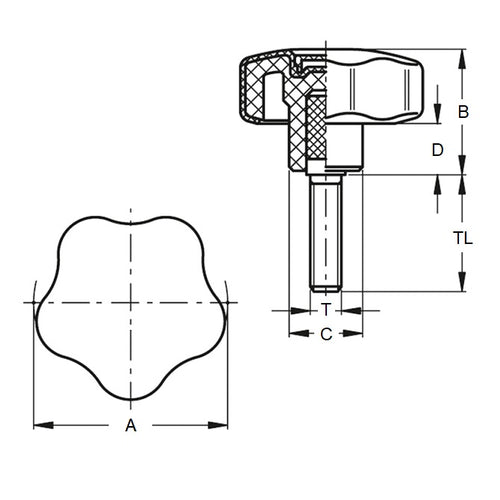

- Thread Size : 1/2-13 UNC (12.7mm)
- Head Diameter (A)
63.00
mm
(Equiv. 2.48 in.) - Thread Length
38.1
mm
(Equiv. 1.5 in.) - Colour Black
- Hub Diameter (C) 22.10 mm
- Knob Height (B) 37.08 mm
- Material Plated Steel and Plastic
Product Compliance and Data
Additional Resources
Cross References
- KHY-275
- KHY275
