KM127C-063-3L - Datasheet

MBA

Category Information

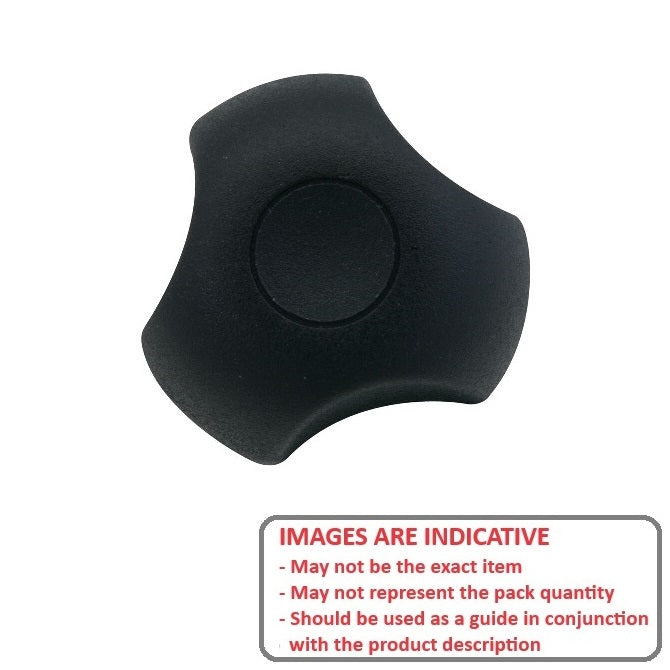

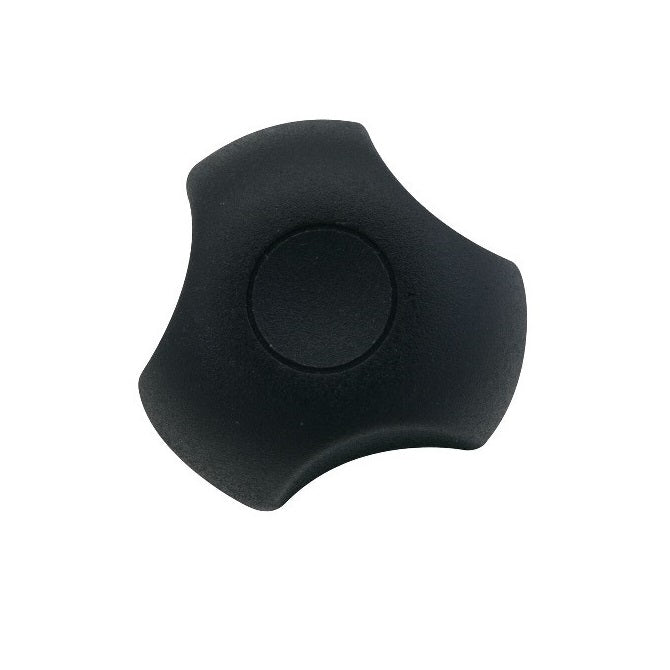

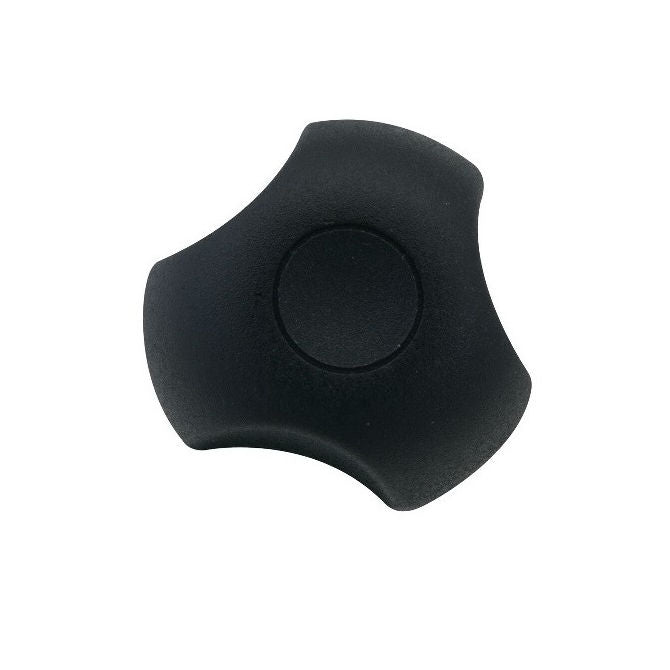

Knobs - Lobe - Three Lobe - Male - Standard

Standard Male Three Lobe Lobe Knobs. Also see star knobs

  • An expanded range may be available on special order. Please enquire.

Product Data

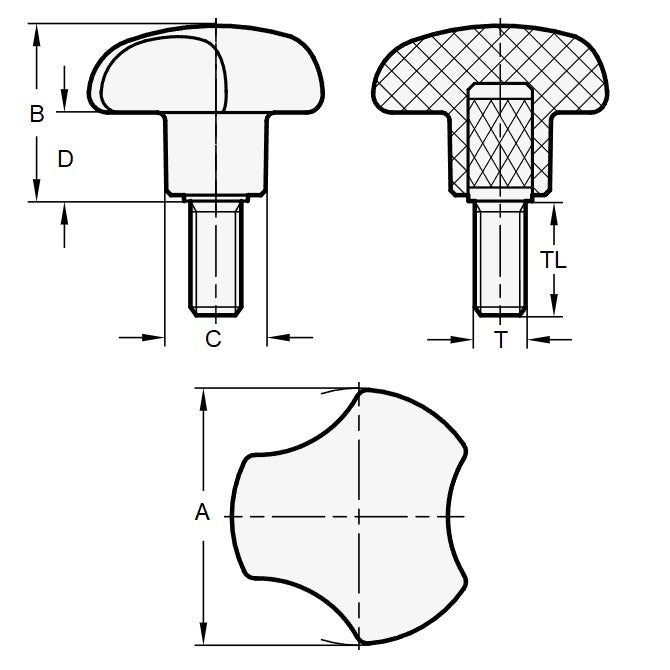

  • Thread Size : 1/2-13 UNC (12.7mm)
  • Head Diameter (A) 62.99 mm
    (Equiv. 2.48 in.)
  • Thread Length 38.1 mm
    (Equiv. 1.5 in.)
  • Colour Black
  • Hub Diameter (C) 23.11 mm
  • Hub Length (D) 11.94 mm
  • Knob Height (B) 39.12 mm
  • Material Plated Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • RST-149
  • RST149
